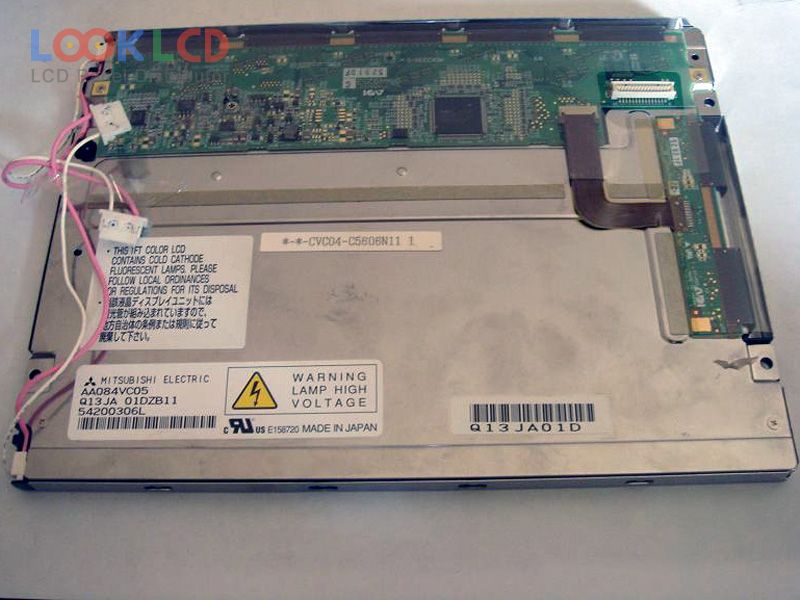

| Nama Wahi | AA084VC05 |
| Waitohu | Mitsubishi |
| Rahi | 8.4 |
| Taupānga | IA |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 480 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | Mitsubishi |
| panel model | AA084VC05 2 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.4 inch |
| resolution | 640(RGB)×480 , VGA |
| display mode | TN, Normally White, Transmissive |
| active area | 170.88×128.16 mm |
| outline | 199.5×149×12 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 480 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 6/19 (Typ.)(Tr/Td) |
| viewing angle | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 31 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
