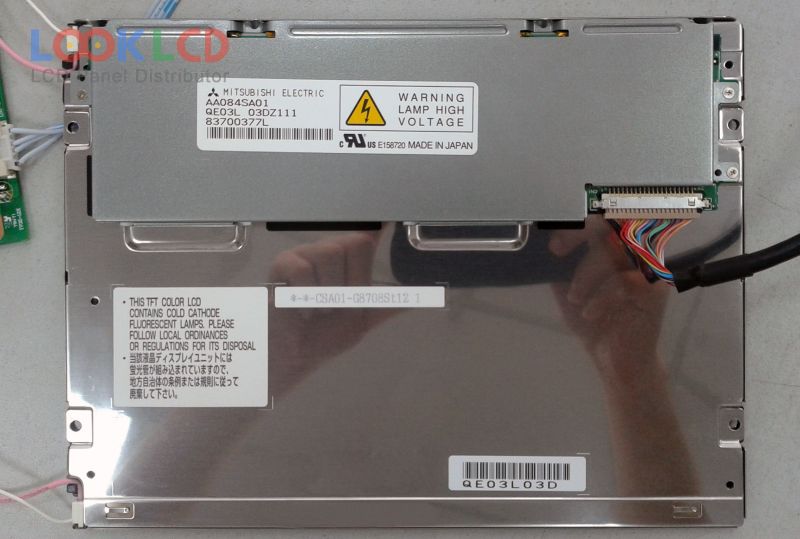

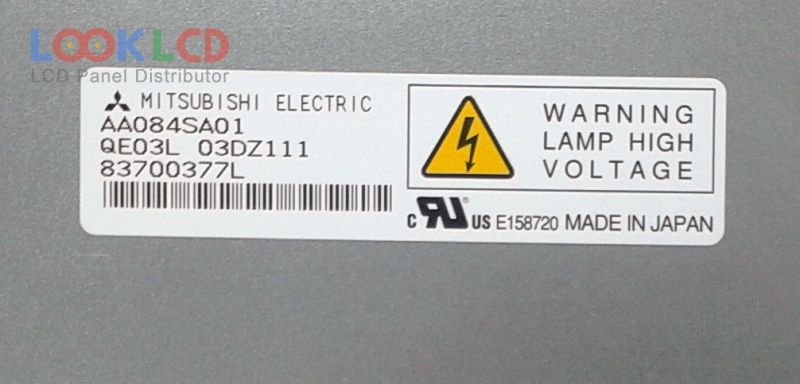

| Nama Wahi | AA084SA01 |
| Waitohu | Mitsubishi |
| Rahi | 8.4 |
| Taupānga | IA |
| Whakatau | 800×600 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 600:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | Mitsubishi |
| panel model | AA084SA01 1 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.4 inch |
| resolution | 800(RGB)×600 , SVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 170.4×127.8 mm |
| outline | 199.5×149 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) |
| display colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| response time | 4/12 (Typ.)(Tr/Td) |
| viewing angle | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
