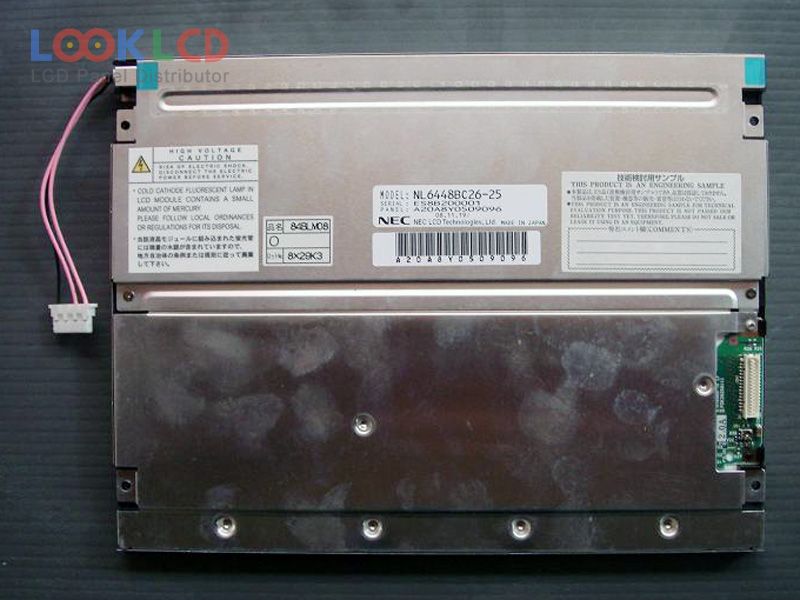

| Nama Wahi | NL6448BC26-25 |
| Waitohu | NLT |
| Rahi | 8.4 |
| Taupānga | IA |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 600 |
| CR | 600:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | NEC |
| panel model | NL6448BC26-25 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.4 inch |
| resolution | 640(RGB)×480 , VGA |
| display mode | TN, Normally White, Transmissive |
| active area | 170.88×128.16 mm |
| outline | 200×152×11 mm |
| surface | Clear, Hard coating (3H) |
| brightness | 600 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) |
| display colors | 262K (6-bit), CIE193160% |
| response time | 6/19 (Typ.)(Tr/Td) |
| viewing angle | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 31 pins |
| input voltage | 3.3/5.0V (Typ.)(VCC) |
| application | IA |
| NL6448AC20-06 | NLT | 6.5 | 640×480 |
| NL6448AC30-12 | NLT | 9.4 | 640×480 |
| NL6448AC33-05 | NLT | 10.4 | 640×480 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
| NL6448BC26-11 | NLT | 8.4 | 640×480 |
| NL6448BC26-25 | NLT | 8.4 | 640×480 |
| NL6448BC33-21 | NLT | 10.4 | 640×480 |
| NL6448BC33-46 | NLT | 10.4 | 640×480 |
| NL6448BC33-70D | NLT | 10.4 | 640×480 |
| NL6448BC33-71 | NLT | 10.4 | 640×480 |
| A150XN01 V2 | AUO | 15.0 | 1024×768 |
| AM-19201200B1TZQW-T00 | AMPIRE | 10.1 | 1920×1200 |
| DLC0570BDG-T-2 | Other | 5.7 | 640×480 |
| G150XGE-L07 | Innolux | 15.0 | 1024×768 |
| LQ9D001 | SHARP | 8.4 | 640×480 |
| LTM10C273 | TOSHIBA | 10.4 | 800×600 |
| NL10276AC20-03 | NLT | 10.4 | 1024×768 |
| NL6448BC26-17 | NLT | 8.4 | 640×480 |
| TM121SV-A01 | SANYO | 12.1 | 800×600 |
| UG-9664HDDAG01 | WiseChip | 0.95 | 96×64 |
