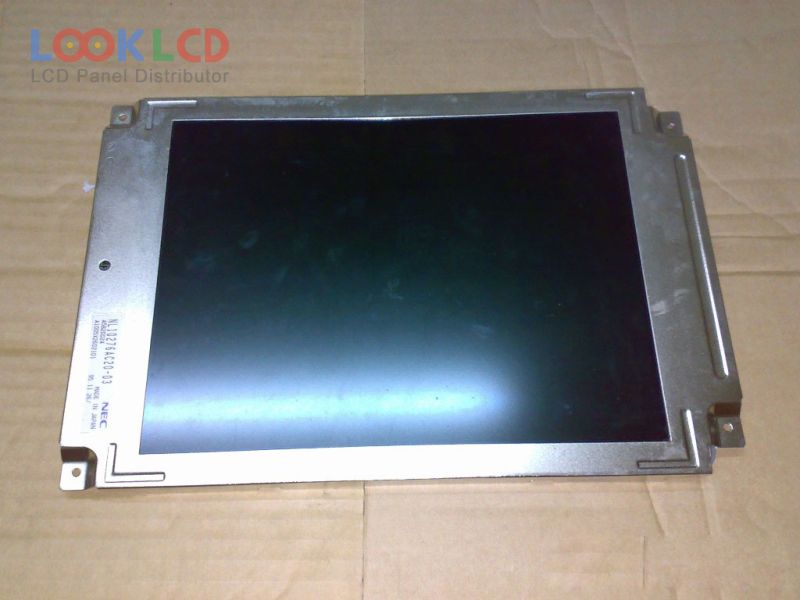

| Nama Wahi | NL10276AC20-03 |
| Waitohu | NLT |
| Rahi | 10.4 |
| Taupānga | IA |
| Whakatau | 1024×768 |
| Te tito | LCM |
| Tirohanga | 85 |
| CR | 100:1 |
| Nga Tae | 4096 |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | NEC |
| panel model | NL10276AC20-03 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.4 inch |
| resolution | 1024(RGB)×768 , XGA |
| display mode | TN, Normally White, Transmissive |
| active area | 211.968×158.976 mm |
| outline | 282×190×13 mm |
| surface | |
| brightness | 85 cd/m² (Typ.) |
| contrast ratio | 100:1 (Typ.) |
| display colors | 4096 (4-bit), CIE193140% |
| response time | 40 (Min.)(Tr+Td) |
| viewing angle | 45/45/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLEmbedded (Inverter) |
| signal interface | TTL (1 ch, 4-bit), 65 pins |
| input voltage | 5.0/12.0V (Typ.)(VCC/VDD) |
| application | IA |
