| Nama Wahi | NL10276BC30-39 |
| Waitohu | NLT |
| Rahi | 15.0 |
| Taupānga | IA |
| Whakatau | 1024×768 |
| Te tito | LCM |
| Tirohanga | 270 |
| CR | 900:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | NEC |

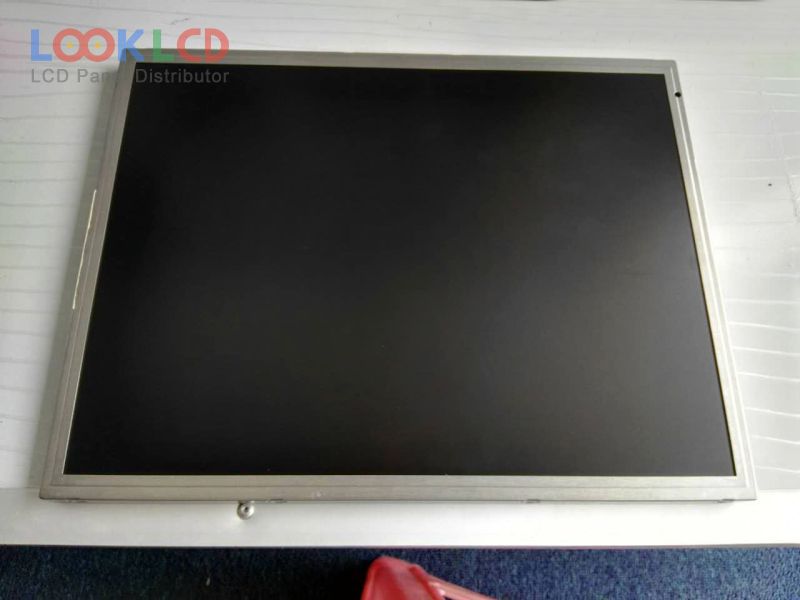

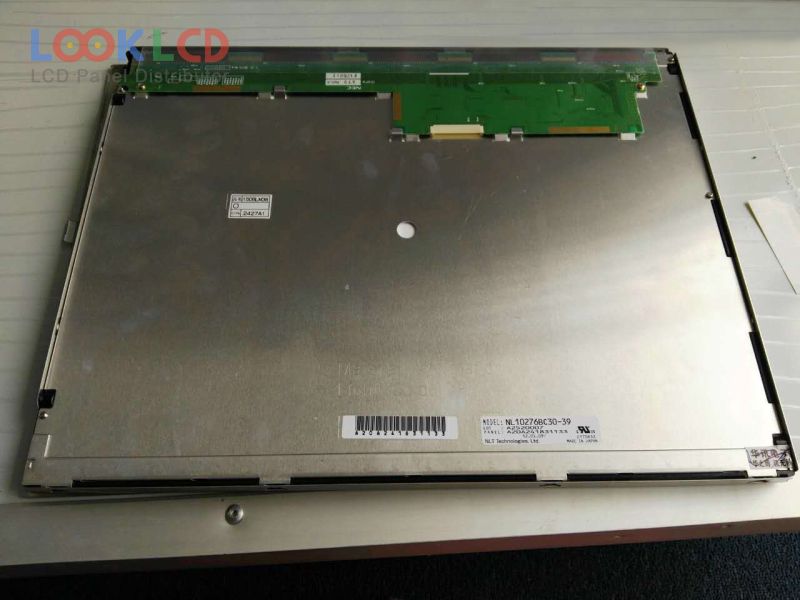

| panel model | NL10276BC30-39 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 15.0 inch |
| resolution | 1024(RGB)×768 , XGA |
| display mode | UA-SFT, Normally Black, Transmissive |
| active area | 304.128×228.096 mm |
| outline | 326.5×253.5×12.2 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 270 cd/m² (Typ.) |
| contrast ratio | 900:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193172% |
| response time | 14/11 (Typ.)(Tr/Td) |
| viewing angle | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 6 stringsWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
