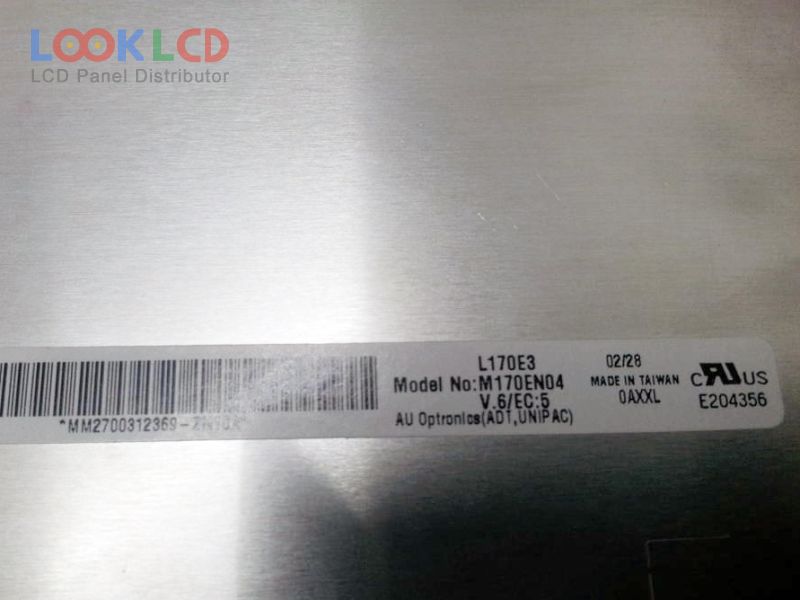

L170E3 EC-5

L170E3 EC-5
L170E3 EC-5 thumb
Waitohu
AUO
Rahi
17.0
Taupānga
DMPC
Whakatau
1280×1024
Te tito
LCM
Tirohanga
250
CR
400:1
Nga Tae
16.7M
Whakamuri
CCFL
Atanga
LVDS
In Stock
12992
Whakatakotoranga

Nama Wahi L170E3 EC-5
WaitohuAUO
Rahi17.0
TaupāngaDMPC
Whakatau1280×1024
Te titoLCM
Tirohanga250
CR400:1
Nga Tae16.7M
WhakamuriCCFL
AtangaLVDS
panel brandACER
panel modelL170E3 EC-5 3 Compatible model
panel type a-Si TFT-LCD , LCM
panel size17.0 inch
resolution1280(RGB)×1024 , SXGA
display modeTN, Normally White, Transmissive
active area337.92×270.336 mm
outline383.5×306×20 mm
surface
brightness250 cd/m² (Typ.)
contrast ratio400:1 (Typ.)
display colors16.7M (8-bit)
response time25/15 (Typ.)(Tr/Td)
viewing angle70/70/60/65 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp type4 pcsCCFLWithout Driver
signal interfaceLVDS (2 ch, 8-bit), 30 pins
input voltage5.0V (Typ.)
applicationDMPC
