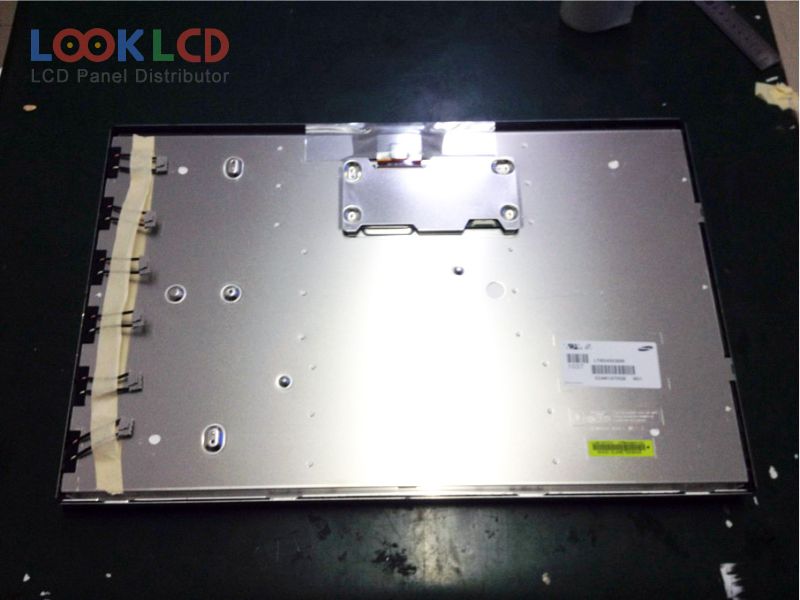

| Nama Wahi | LTM240CS09 |
| Waitohu | Samsung |
| Rahi | 24.0 |
| Taupānga | DMPC |
| Whakatau | 1920×1200 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | SAMSUNG |
| panel model | LTM240CS09 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 24.0 inch |
| resolution | 1920(RGB)×1200 , WUXGA |
| display mode | S-PVA, Normally Black, Transmissive |
| active area | 518.4×324 mm |
| outline | 546.4×352 mm |
| surface | Antiglare (Haze 50%), Hard coating (3H) |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193192% |
| response time | 11/5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 6 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| input voltage | 5.0V (Typ.) |
| application | DMPC |
