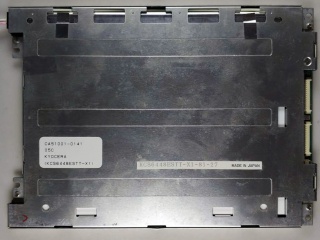

| Nama Wahi | KCS6448ESTT-X1 |
| Waitohu | Kyocera |
| Rahi | 7.7 |
| Taupānga | Industrial |
| Whakatau | 640×480 |
| Te tito | LCM, CSTN-LCD |
| Tirohanga | |
| CR | 20:1 |
| Nga Tae | Color |
| Whakamuri | CCFL |
| Atanga | |
| manufacturer | Kyocera |
| model name | KCS6448ESTT-X1 |
| screen size | 7.7 inch |
| screen type | LCM, CSTN-LCD |
| pixel number | 640(RGB)×480 (VGA) 103PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 157.42 × 118.06 (H×V) |
| outline(mm) | 199 × 147 × 10.5 (H×V×D) |
| bezel area(mm) | 160.42 × 121.06 (H×V) |
| treatment | Antiglare |
| luminance | - |
| contrast ratio | 20 : 1 (Typ.) (TM) |
| viewing angle | 50/50/40/30 (Typ.)(CR≥2) |
| response | 160/80 (Typ.)(Tr/Td) ms |
| good view at | - |
| work mode | STN, Normally Black, Transmissive |
| color depth | Color |
| backlight | CCFL |
| mass | - |
| used for | Industrial |
| refresh rate | 75Hz |
| touchscreen | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
