| Nama Wahi | KCS077VG2EA-A43 |
| Waitohu | Kyocera |
| Rahi | 7.7 |
| Taupānga | IA |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 25:1 |
| Nga Tae | Color |
| Whakamuri | CCFL |
| Atanga | Parallel Data |
| panel brand | Kyocera |

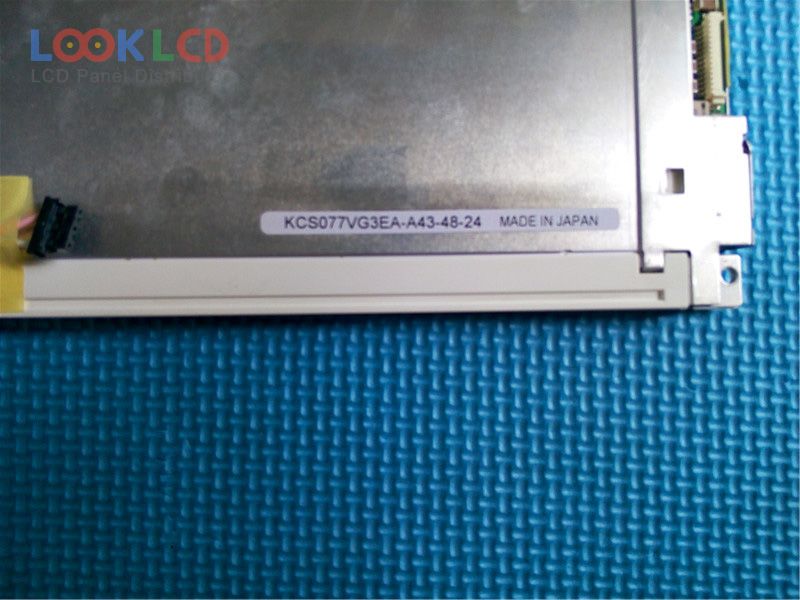

| panel model | KCS077VG2EA-A43 |
| panel type | CSTN-LCD , LCM |
| panel size | 7.7 inch |
| resolution | 640(RGB)×480 , VGA |
| display mode | STN, Normally Black, Transmissive |
| active area | 157.42×118.06 mm |
| outline | 199×147×10.5 mm |
| surface | |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 25:1 (Typ.) |
| display colors | Color |
| response time | 300 (Typ.)(Tr+Td) |
| viewing angle | |
| frequency | 75Hz |
| lamp type | 2 pcsCCFL |
| signal interface | Parallel Data (8-bit), 29 pins |
| application | IA |
