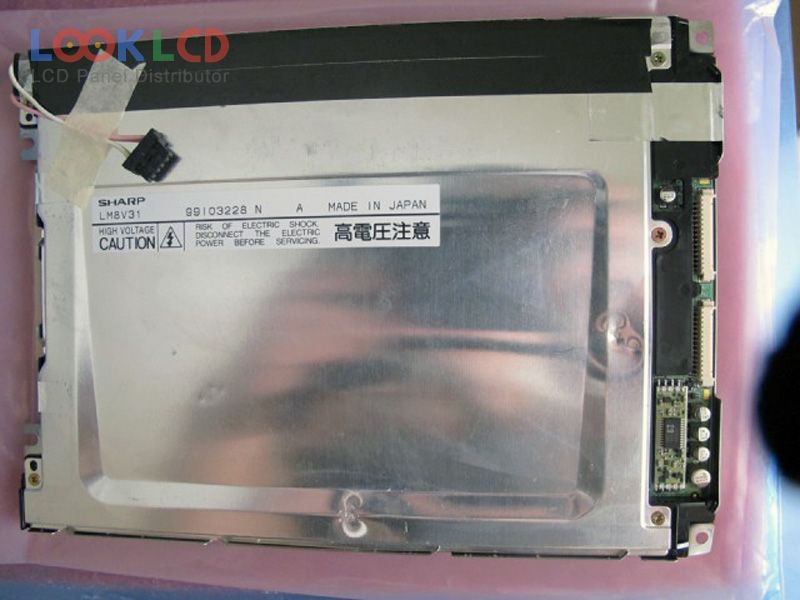

| Nama Wahi | LM8V31 |
| Waitohu | SHARP |
| Rahi | 7.7 |
| Taupānga | IA |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 55 |
| CR | 30:1 |
| Nga Tae | Color |
| Whakamuri | CCFL |
| Atanga | Parallel Data |
| panel brand | SHARP |
| panel model | LM8V31 |
| panel type | CSTN-LCD , LCM |
| panel size | 7.7 inch |
| resolution | 640(RGB)×480 , VGA |
| display mode | STN, Normally Black, Transmissive |
| active area | 157.42×118.06 mm |
| outline | 197×142.5 mm |
| surface | |
| brightness | 55 cd/m² (Typ.) |
| contrast ratio | 30:1 (Typ.) |
| display colors | Color |
| response time | 270/80 (Typ.)(Tr/Td) |
| viewing angle | 30/30/25/15 (Typ.)(CR≥5)(L/R/U/D) |
| frequency | 75Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (8-bit), 29 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
