| Nama Wahi | ER0570A2NC6 |
| Waitohu | EDT |
| Rahi | 5.7 |
| Taupānga | IA |
| Whakatau | 320×240 |
| Te tito | LCM |
| Tirohanga | 180 |
| CR | 50:1 |
| Nga Tae | Color |
| Whakamuri | CCFL |
| Atanga | Parallel Data |
| panel brand | EDT |

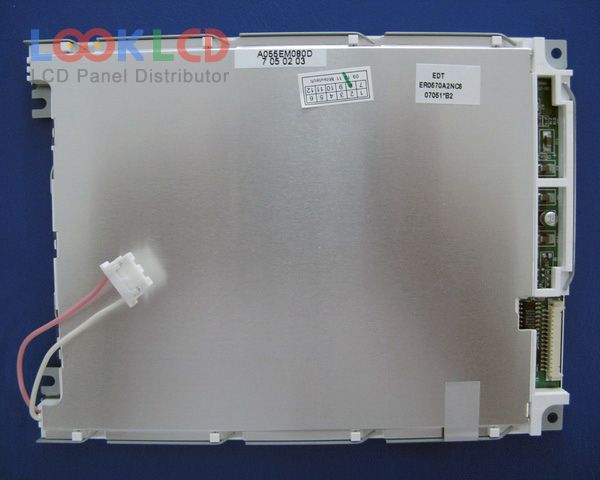

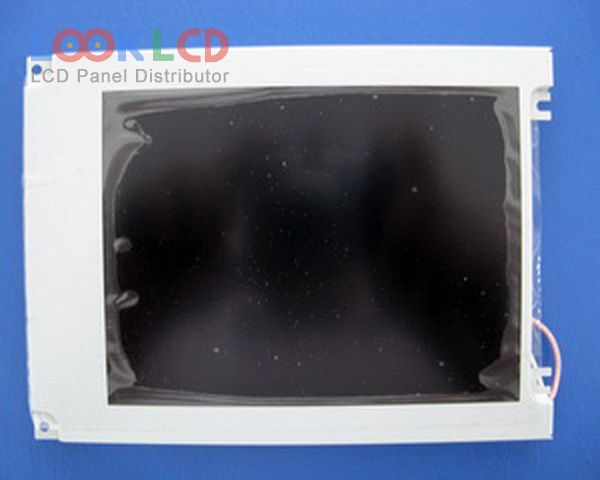

| panel model | ER0570A2NC6 |
| panel type | CSTN-LCD , LCM |
| panel size | 5.7 inch |
| resolution | 320(RGB)×240 , QVGA |
| display mode | STN, Normally Black, Transmissive |
| active area | 115.2×86.4 mm |
| outline | 154.6×114.8×8.8 mm |
| surface | |
| brightness | 180 cd/m² (Typ.) |
| contrast ratio | 50:1 (Typ.) |
| display colors | Color |
| response time | 350/250 (Typ.)(Tr/Td) |
| viewing angle | 45/45/20/38 (Typ.)(CR≥2)(L/R/U/D) |
| frequency | 120Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (8-bit), 15 pins |
| input voltage | 3.0/5.0V (Typ.)(VDD) |
| application | IA |
