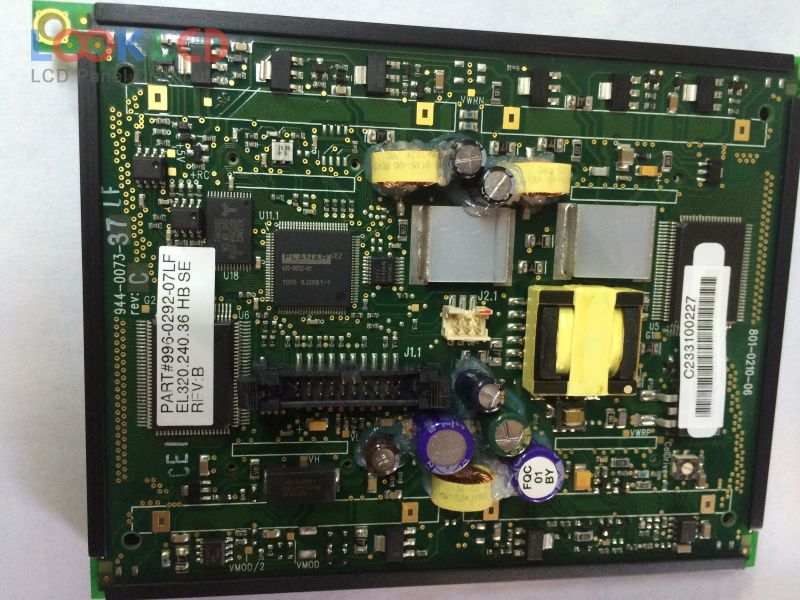

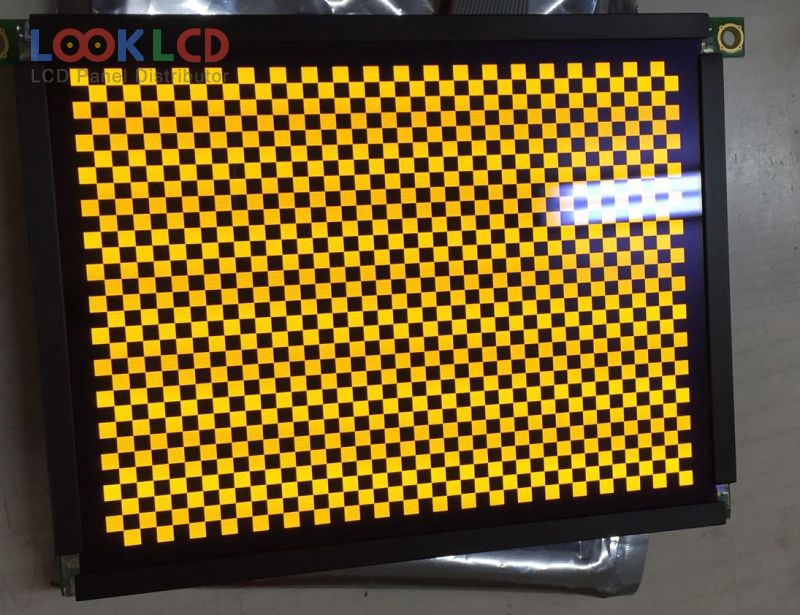

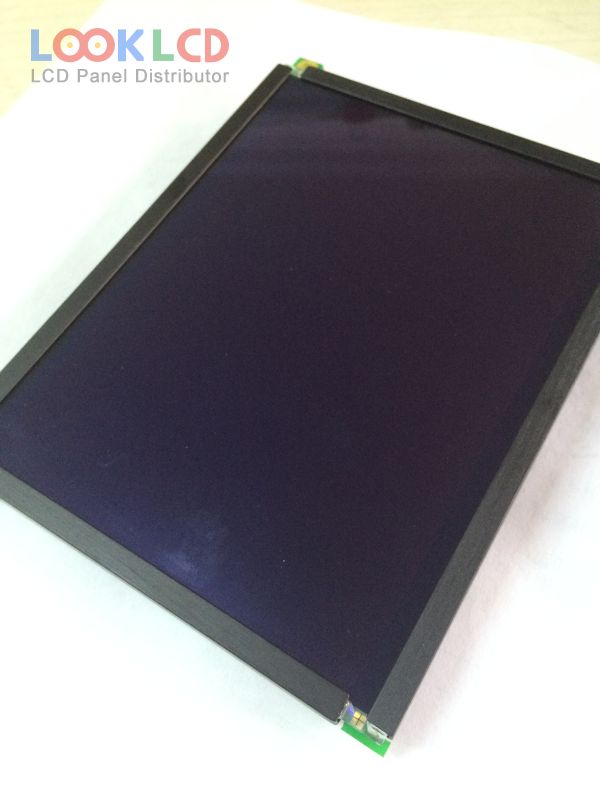

EL320.240.36 HB SE

EL320.240.36 HB SE
EL320.240.36 HB SE
EL320.240.36 HB SE
EL320.240.36 HB SE thumb EL320.240.36 HB SE thumb EL320.240.36 HB SE thumb
Waitohu
PLANAR
Rahi
5.7
Taupānga
IA
Whakatau
320×240
Te tito
EL
Tirohanga
150
CR
90:1
Nga Tae
Mono(Yellow)
Whakamuri
self
Atanga
Parallel Data
In Stock
200
Whakatakotoranga

Nama Wahi EL320.240.36 HB SE
WaitohuPLANAR
Rahi5.7
TaupāngaIA
Whakatau320×240
Te titoEL
Tirohanga150
CR90:1
Nga TaeMono(Yellow)
Whakamuriself
AtangaParallel Data
panel brandPLANAR
panel modelEL320.240.36 HB SE
panel type EL , EL
panel size5.7 inch
resolution320×240 , QVGA
active area115.1×86.3 mm
outline148.1×104.7 mm
surface
brightness150 cd/m² (Typ.)
contrast ratio90 : 1 (Typ.)
display colorsMono(Yellow) (1-bit)
viewing angle89/89/89/89 (Typ.)(L/R/U/D)
frequency120Hz
signal interfaceParallel Data (1ch, 4-bit), 26 pins
input voltage5/12V (Typ.)(VL/VH)
applicationIA
