Lumineq EL320.256-FD7 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

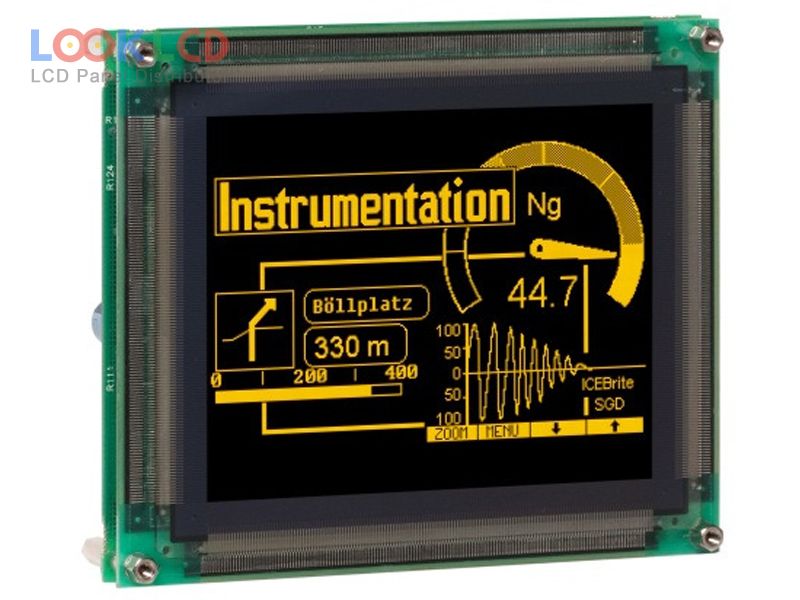

EL320.256-FD7

EL320.256-FD7
EL320.256-FD7 thumb
Waitohu
Lumineq
Rahi
4.8
Taupānga
IA
Whakatau
320×256
Te tito
EL
Tirohanga
55
CR
35:1
Nga Tae
Mono(Yellow)
Whakamuri
self
Atanga
In Stock
10
Whakatakotoranga

Nama Wahi EL320.256-FD7
WaitohuLumineq
Rahi4.8
TaupāngaIA
Whakatau320×256
Te titoEL
Tirohanga55
CR35:1
Nga TaeMono(Yellow)
Whakamuriself
Atanga
panel brandLumineq
panel modelEL320.256-FD7
panel type EL , EL
panel size4.8 inch
resolution320×256
active area95.9×76.7 mm
outline130×110 mm
surface
brightness55 cd/m² (Typ.)
contrast ratio35 : 1 (Typ.)
display colorsMono(Yellow) (1-bit)
viewing angle89/89/89/89 (Typ.)(L/R/U/D)
frequency120Hz
input voltage5/(10.8~30)V (Typ.)(VCC1/VCC2)
applicationIA
