| Nama Wahi | DLC0220KZG |
| Waitohu | Other |
| Rahi | 2.2 |
| Taupānga | MPH |
| Whakatau | 320×320 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 120:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |

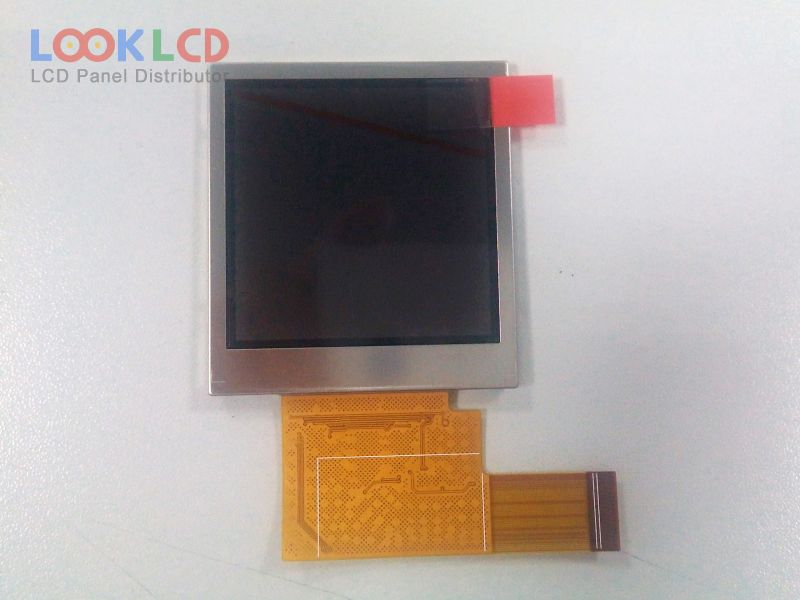

| panel brand | DLC |
| panel model | DLC0220KZG |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 2.2 inch |
| resolution | 320(RGB)×320 |
| display mode | ECB, Normally White, Transflective |
| active area | 39.36×39.36 mm |
| outline | 47.4×51.85×2.7 mm |
| surface | |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 120:1 (Typ.)(Transmissive)5:1 (Typ.)(Reflective) |
| display colors | 262K (6-bit), CIE193145% |
| response time | 35 (Typ.)(Tr+Td) |
| viewing angle | 45/45/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S1PWLEDWithout Driver |

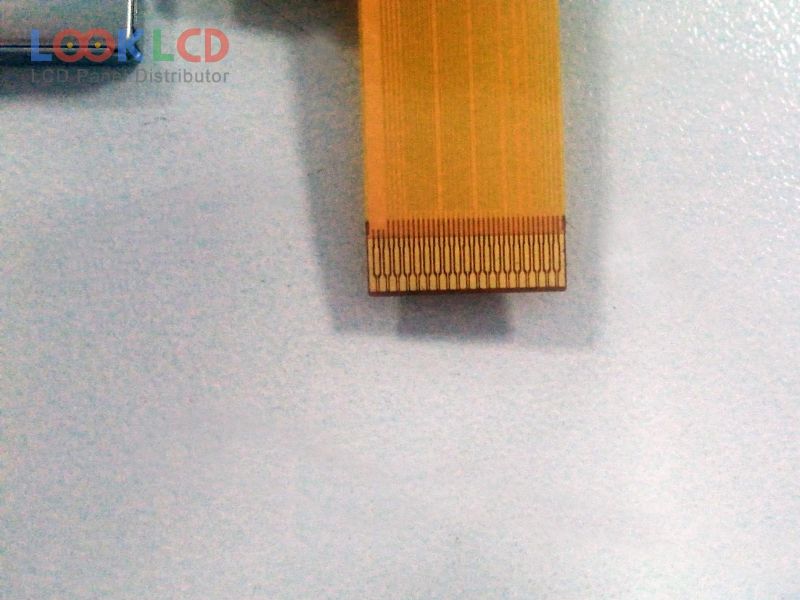

| signal interface | Parallel RGB (1 ch, 6-bit), 39 pins |
| input voltage | 3.0V (Typ.)(VDD) |
| application | MPH |
