| Nama Wahi | CLAA101WH12 LE |
| Waitohu | CPT |
| Rahi | 10.1 |
| Taupānga | PAD |
| Whakatau | 1280×800 |
| Te tito | LCM |
| Tirohanga | 350 |
| CR | 600:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | CPT |

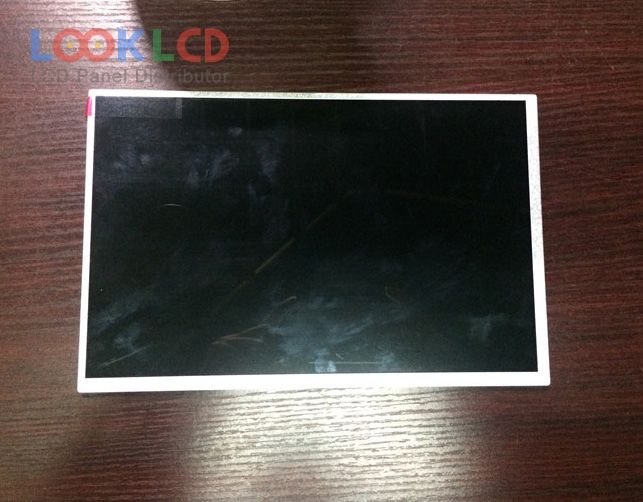

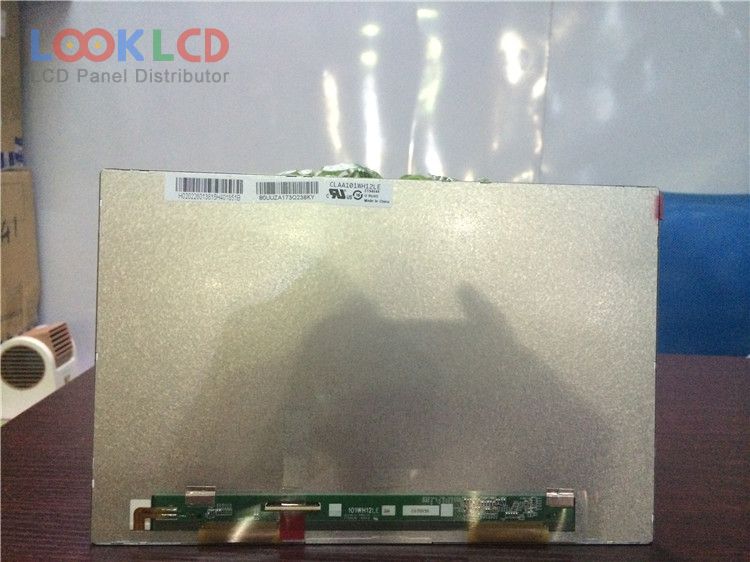

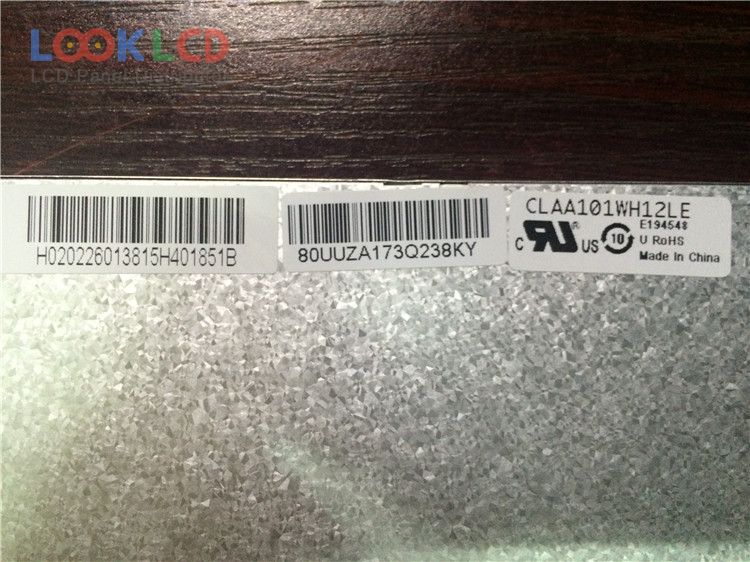

| panel model | CLAA101WH12 LE |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1280(RGB)×800 , WXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 216.96×135.6 mm |
| outline | 222.46×149.1×4.96 mm |
| surface | Hard coating (3H) |
| brightness | 350 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) |
| display colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| response time | 30 (Typ.)(Tr+Td) |
| viewing angle | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S12PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| input voltage | 3.3/11/21.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| application | PAD |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| CLAA101ND07CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01 | CPT | 10.1 | 1366×768 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| EE090NA-01C | Innolux | 9.0 | 1280×800 |
| HJ101NA-02C | Innolux | 10.1 | 1280×800 |
| HV070WX2-100 | HYDIS | 7.0 | 800×1280 |
| HV101HD1-1E2 | HYDIS | 10.1 | 1366×768 |
| LP101WH4-SLA3 | LG Display | 10.1 | 1366×768 |
| LTL070NL01-002 | Samsung | 7.0 | 1024×600 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| N080ICE-GB0 Rev.A1 | Innolux | 8.0 | 800×1280 |
| Q101IRE-LA1 | Innolux | 10.1 | 1280×800 |
