| Nama Wahi | AV123Z7M-N1C |
| Waitohu | BOE |
| Rahi | 12.3 |
| Taupānga | Outdoor High Brightn |
| Whakatau | 1920×720 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | 4 |
| Atanga | LVDS |
| manufacturer | BOE |
| model name | AV123Z7M-N1C 1 Compatible |
| screen size | 12.3 inch |
| screen type | LCM , a-Si TFT-LCD |
| pixel number | 1920(RGB)×720 167PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 292.032 × 109.512 (H×V) |
| outline(mm) | 307 × 125.5 × 13.6 (H×V×D) |
| bezel area(mm) | 295 × 112 (H×V) |
| treatment | Antiglare, Hard coating (3H), Reflection 6.0% (Max.) |
| luminance | 800 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| response | 30 (Typ.)(Tr+Td) ms |
| good view at | Symmetry |
| work mode | FFS, Normally Black, Transmissive |
| color depth | 16.7M 70% NTSC |
| backlight | 4 strings WLED , 30K hours , No Driver |
| mass | TBD |
| used for | Outdoor High Brightness Automotive Display |
| refresh rate | 60Hz |
| touchscreen | - |

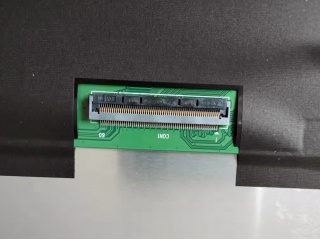

| signal type | LVDS (2 ch, 8-bit) , 60 pins Connector |
| voltage supply | 3.3/3.3V (Typ.)(VDD/VDDA) |
| max. ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
