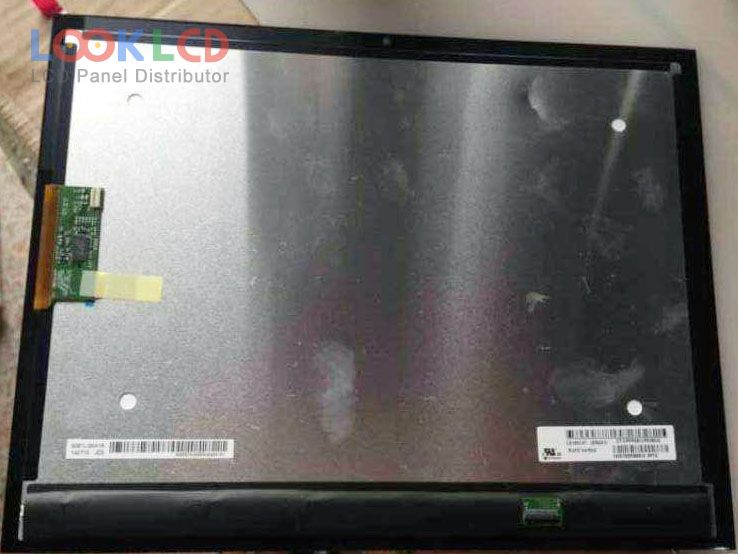

| Nama Wahi | LD123UX1-SMA1 |
| Waitohu | LG Display |
| Rahi | 12.3 |
| Taupānga | PAD |
| Whakatau | 1600×1200 |
| Te tito | LCM |
| Tirohanga | 360 |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | MIPI |
| panel brand | LG Display |
| panel model | LD123UX1-SMA1 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 12.3 inch |
| resolution | 1600(RGB)×1200 , UXGA |
| display mode | IPS, Normally Black, Transmissive |
| active area | 249.6×187.2 mm |
| outline | 261×201×2.65 mm |
| surface | Glare (Haze 0%) |
| brightness | 360 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193159% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | MIPI (4 data lanes), 35 pins |
| input voltage | 3.3V (Typ.) |
| application | PAD |
