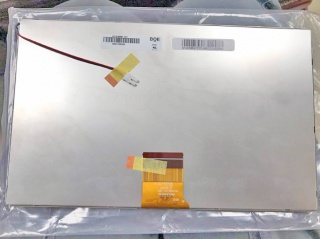

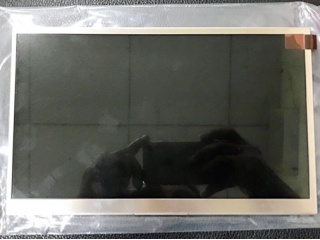

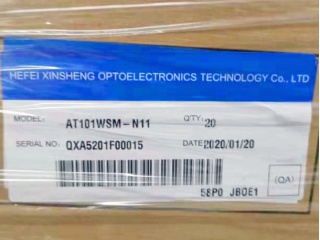

| Nama Wahi | AT101WSM-N11-58P0 |
| Waitohu | BOE |
| Rahi | 10.1 |
| Taupānga | Automotive Display |
| Whakatau | 1024×600 |
| Te tito | a-Si TFT-LCD, LCM |
| Tirohanga | |
| CR | 500:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| brand | BOE |
| model | AT101WSM-N11-58P0 |
| diagonal size | 10.1 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 1024(RGB)×600 [WSVGA] 117PPI |
| configuration | RGB Vertical Stripe |
| active area | 222.72(H)×125.28(V) mm |
| outline dim. | 235(H)×144.9(V) ×5.44(D) mm |
| bezel area | 226(H)×128.6(V) mm |
| treatment | Antiglare, Hard coating (3H) |
| luminance | 500 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) (TM) |
| view direction | - |
| response time | 25 (Typ.)(Tr+Tf) |
| viewing angle | 80/80/60/70 (Typ.)(CR≥10) |
| operating mode | TN, Normally White, Transmissive |
| support color | 262K/16.7M 50% NTSC |
| light source | WLED [3S14P] , 20K hours , W/O Driver |
| weight | 300g (Max.) |
| designed for | Automotive Display |
| frame rate | 60Hz |
| touch panel | Without |
| interface type | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| power supply | 3.3/11/21/-8V (Typ.)(VDD/AVDD/VGH/VGL) |
| environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| AT101WSM-NW0-3800(3900) | BOE | 10.1 | 1024×600 |
| B101AW01 V2 HW0A | AUO | 10.1 | 1024×576 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| F101NWN7-0 | IVO | 10.1 | 1920×1200 |
| HSD101PHW1-A00 | HannStar | 10.1 | 1366×768 |
| LP101WS1-TLB3 | LG Display | 10.1 | 1024×576 |
| N101L6-L0D | Innolux | 10.1 | 1024×600 |
| P101KDA-AP1 | Innolux | 10.1 | 1200×1920 |
| PQ 3Qi-01 | Pixel Qi | 10.1 | 1024×600 |
| YX101GL-01A | SEBO | 10.1 | 1280×800 |
