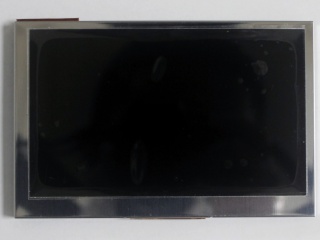

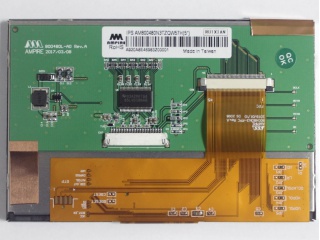

| Nama Wahi | AM-800480N3TZQW-57H |
| Waitohu | AMPIRE |
| Rahi | 5.0 |
| Taupānga | Industrial Automotiv |
| Whakatau | 800×480 |
| Te tito | LCM, a-Si TFT-LCD |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 262K |
| Whakamuri | 3S6P |
| Atanga | |
| manufacturer | AMPIRE |
| model name | AM-800480N3TZQW-57H |
| screen size | 5.0 inch |
| screen type | LCM, a-Si TFT-LCD |
| pixel number | 800(RGB)×480 (WVGA) 188PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 108 × 64.8 (H×V) |
| outline(mm) | 119.7 × 78.3 × 10.05 (H×V×D) |
| bezel area(mm) | 109.6 × 66.4 (H×V) |
| treatment | - |
| luminance | 1000 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| response | 30 (Typ.)(Tr+Td) ms |
| good view at | Symmetry |
| work mode | IPS, Normally Black, Transmissive |
| color depth | 262K |
| backlight | 3S6P WLED , 50K hours , With LED Driver |
| mass | - |
| used for | Industrial Automotive Display |
| refresh rate | 60Hz |
| touchscreen | Without |
| Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
