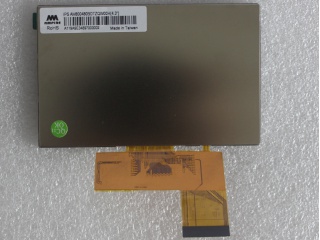

| Nama Wahi | AM-800480BDTZQW-00H |
| Waitohu | AMPIRE |
| Rahi | 4.3 |
| Taupānga | Industrial Automotiv |
| Whakatau | 800×480 |
| Te tito | a-Si TFT-LCD, LCM |
| Tirohanga | |
| CR | 700:1 |
| Nga Tae | 16.2M |
| Whakamuri | WLED |
| Atanga | Parallel |
| brand | AMPIRE |
| model | AM-800480BDTZQW-00H |
| diagonal size | 4.3 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 800(RGB)×480 [WVGA] 216PPI |
| configuration | RGB Vertical Stripe |
| active area | 95.04(H)×53.856(V) mm |
| outline dim. | 105.3(H)×67(V) mm |
| bezel area | 97.9(H)×56.7(V) mm |
| treatment | - |
| luminance | 500 cd/m² (Typ.) |
| contrast ratio | 700:1 (Typ.) (TM) |
| view direction | Symmetry |
| response time | 40 (Typ.)(Tr+Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| operating mode | Normally Black, Transmissive |
| support color | 16.2M |
| light source | WLED [6S2P] , 50K hours , W/O Driver |
| weight | - |
| designed for | Industrial Automotive Display |
| frame rate | 60Hz |
| touch panel | Without |
| interface type | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| power supply | 3.3V (Typ.) |
| environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
