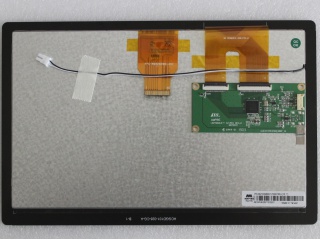

| Nama Wahi | AM-1024600ITZQW-T00H |
| Waitohu | AMPIRE |
| Rahi | 10.1 |
| Taupānga | Industrial |
| Whakatau | 1024×600 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 500:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| manufacturer | AMPIRE |
| screen size | 10.1 inch |
| pixel number | 1024(RGB)×600 (WSVGA) 117PPI |
| active area(mm) | 222.72 × 125.28 (H×V) |
| bezel area(mm) | - |
| luminance | 465 cd/m² (Typ.) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| good view at | Symmetry |
| color depth | 262K/16.7M 70% NTSC |
| mass | - |
| refresh rate | 60Hz |
| signal type | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| voltage supply | 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| max. ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| model name | AM-1024600ITZQW-T00H |
| screen type | LCM , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| outline(mm) | 255 × 165.8 (H×V×D) |
| treatment | Antiglare, Hard coating |
| contrast ratio | 500 : 1 (Typ.) (TM) |
| response | 12/28 (Typ.)(Tr/Td) ms |
| work mode | IPS, Normally Black, Transmissive |
| backlight | WLED , 50K hours , No Driver |
| used for | Industrial |
| touchscreen | PCAP |
