AUO A030DW01 V3 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

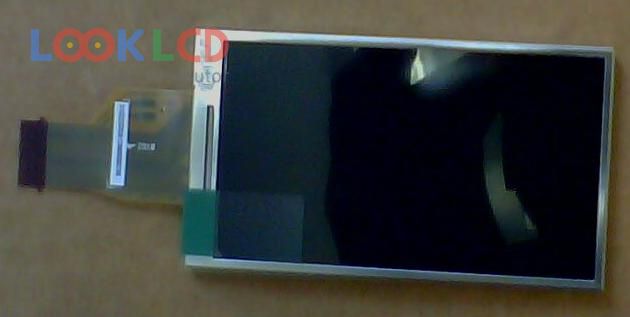

A030DW01 V3

A030DW01 V3
A030DW01 V3 thumb
Waitohu
AUO
Rahi
3.0
Taupānga
DSC
Whakatau
320×240
Te tito
LCM
Tirohanga
350
CR
300:1
Nga Tae
16.7M
Whakamuri
WLED
Atanga
Serial RGB
In Stock
3115
Whakatakotoranga

Nama Wahi A030DW01 V3
WaitohuAUO
Rahi3.0
TaupāngaDSC
Whakatau320×240
Te titoLCM
Tirohanga350
CR300:1
Nga Tae16.7M
WhakamuriWLED
AtangaSerial RGB
panel brandAUO
panel modelA030DW01 V3
panel type a-Si TFT-LCD , LCM
panel size3.0 inch
resolution320(RGB)×240 , QVGA
display modeTN, Normally White, Transmissive
active area65.52×36.84 mm
outline74.92×42.74 mm
surfaceHard coating
brightness350 cd/m² (Typ.)
contrast ratio300:1 (Typ.)
display colors16.7M (8-bit)
response time15/20 (Typ.)(Tr/Td)
viewing angle60/60/50/60 (Typ.)(CR≥10)(L/R/U/D)
lamp type3S1PWLEDWithout Driver
signal interfaceSerial RGB (8-bit) + SPI, CCIR601/656, 39 pins
input voltage3.3/15/-10V (Typ.)(VDD/VGH/VGL)
applicationDSC
