| Nama Wahi | TX20D28VM2BAB |
| Waitohu | KOE |
| Rahi | 8.0 |
| Taupānga | IA |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 550 |
| CR | 600:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |

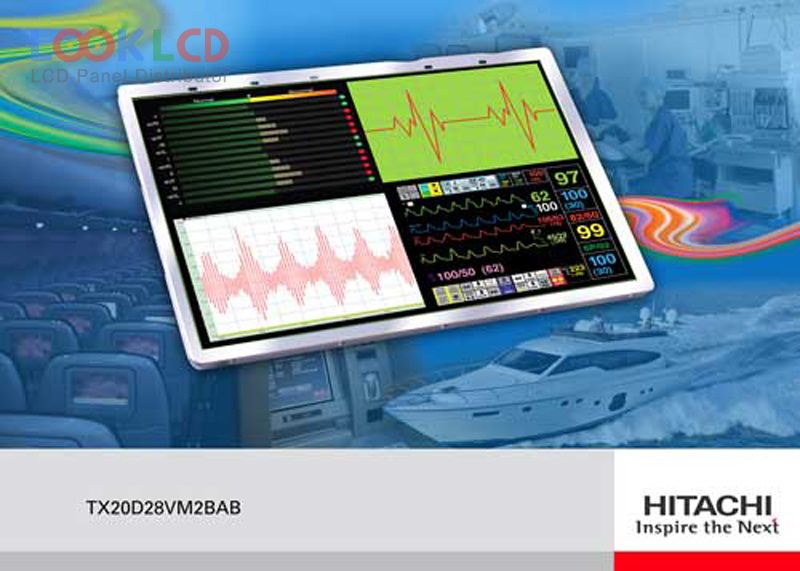

| panel brand | HITACHI |
| panel model | TX20D28VM2BAB |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 174×104.4 mm |
| outline | 189×120 mm |
| surface | |
| brightness | 550 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) |
| display colors | 262K (6-bit), CIE193165% |
| response time | 20/10 (Typ.)(Tr/Td) |
| viewing angle | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S17PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
