| Nama Wahi | TV080WUM-AK2 |
| Waitohu | BOE |
| Rahi | 8.0 |
| Taupānga | Pad & Tablet |
| Whakatau | 1200×1920 |
| Te tito | Assembly , a-Si TF |
| Tirohanga | |
| CR | 850:1 |
| Nga Tae | 16.7M |
| Whakamuri | 7S3P |
| Atanga | MIPI |
| manufacturer | BOE |

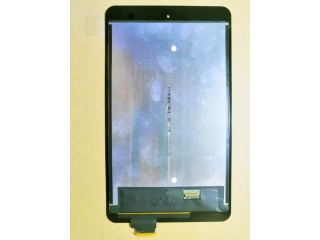

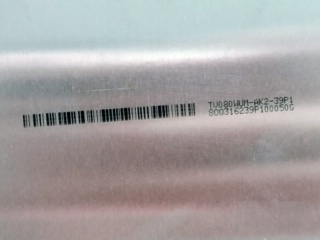

| model name | TV080WUM-AK2 |
| screen size | 8.0 inch |
| screen type | Assembly , a-Si TFT-LCD |
| pixel number | 1200(RGB)×1920 (WUXGA) 283PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 107.64 × 172.224 (H×V) |
| outline(mm) | 122.2 × 210.95 × 3.95 (H×V×D) |
| luminance | 350 cd/m² (Typ.) |
| contrast ratio | 850 : 1 (Typ.) (TM) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| response | 25 (Typ.)(Tr+Td) ms |
| good view at | Symmetry |
| work mode | - |
| color depth | 16.7M 63% NTSC |
| backlight | 7S3P WLED , 15K hours , No Driver |
| mass | 130g (Max.) |
| used for | Pad & Tablet |
| refresh rate | 60Hz |
| touchscreen | PCAP, Optical Bonding |
| signal type | MIPI (4 data lanes) , 39 pins Connector |
| voltage supply | 3.3V (Typ.) |
| max. ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: -20 ~ 60 °C |
| AV080WSM-NW0 | BOE | 8.0 | 1024×600 |
| B080UAN01.4 | AUO | 8.0 | 1200×1920 |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA080LA0ACW | CPT | 8.0 | 800×480 |
| CLAA080XA01BW | CPT | 8.0 | 1024×768 |
| LQ080T5GG01B | SHARP | 8.0 | 480×234 |
| TM080TDHG01 | Tianma | 8.0 | 1024×768 |
| TM080VDSP01 | Tianma | 8.0 | 1200×1920 |
| TM080VG-22L01 | SANYO | 8.0 | 640×480 |
| TV080WXM-NL0 | BOE | 8.0 | 800×1280 |
