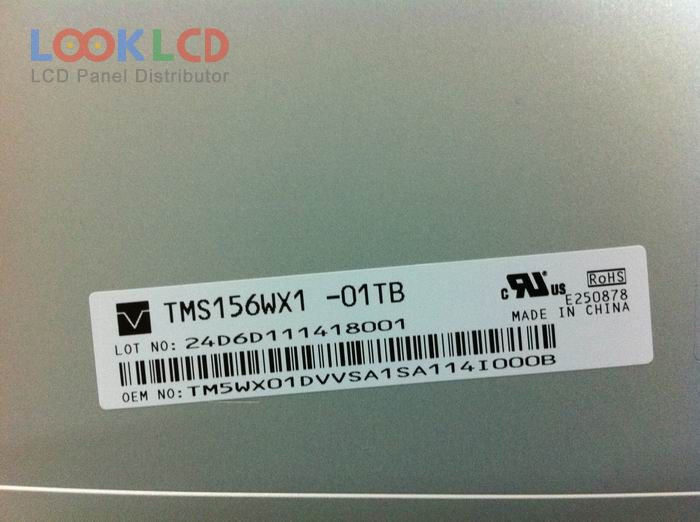

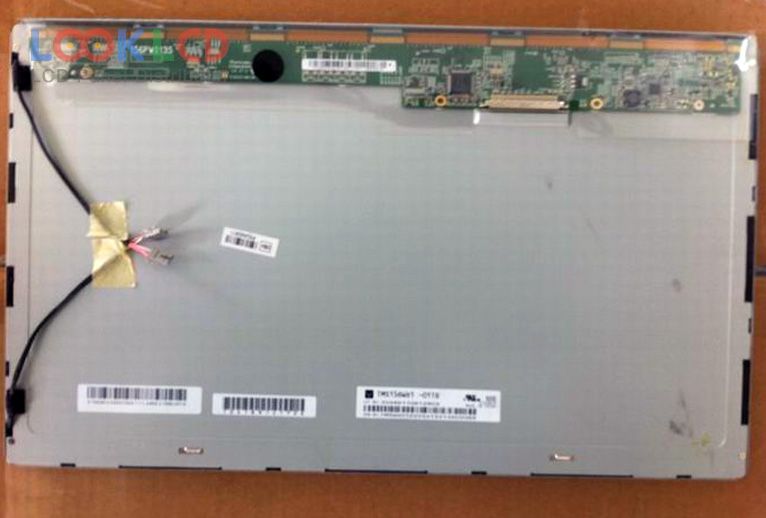

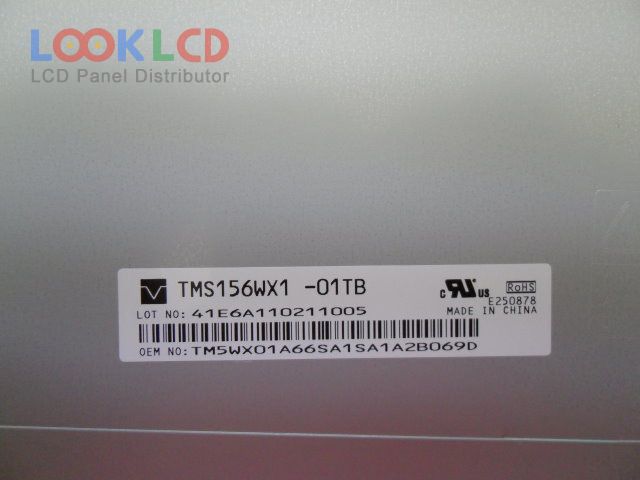

| Nama Wahi | TMS156WX1-01TB |
| Waitohu | Tianma |
| Rahi | 15.6 |
| Taupānga | DMPC |
| Whakatau | 1366×768 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 500:1 |
| Nga Tae | 16.7M |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | AVIC |
| panel model | TMS156WX1-01TB 4 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 15.6 inch |
| resolution | 1366(RGB)×768 , WXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 344.232×193.536 mm |
| outline | 363.8×215.9×14.8 mm |
| surface | Antiglare |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193160% |
| response time | 2/6 (Typ.)(Tr/Td) |
| viewing angle | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| input voltage | 5.0V (Typ.) |
| application | DMPC |
| CLAA156WA07A | CPT | 15.6 | 1366×768 |
| G156HAN01.0 | AUO | 15.6 | 1920×1080 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLB1 | LG Display | 15.6 | 1366×768 |
| LQ156D1JX03 | SHARP | 15.6 | 3840×2160 |
| LTN156AT01-U01 | Samsung | 15.6 | 1366×768 |
| LTN156HT02-B01 | Samsung | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| TMS156WX1-01TB | Tianma | 15.6 | 1366×768 |
| TMS156WX1-02TC | Tianma | 15.6 | 1366×768 |
| LM151X3-C3C1 | LG Display | 15.1 | 1024×768 |
| LM201WE3-TLE1 | LG Display | 20.1 | 1680×1050 |
| LM201WE3-TLJ3 | LG Display | 20.1 | 1680×1050 |
| LM215WF4-TLG1 | LG Display | 21.5 | 1920×1080 |
| LM220WE1-TLD2 | LG Display | 22.0 | 1680×1050 |
| LM270WQ1-SDB3 | LG Display | 27.0 | 2560×1440 |
| M170EP01 V2 | AUO | 17.0 | 1280×1024 |
| M230HGE-L20 | Innolux | 23.0 | 1920×1080 |
| M236HJJ-L30 | Innolux | 23.6 | 1920×1080 |
| NL128102BC23-03 | NLT | 15.4 | 1280×1024 |
