| Nama Wahi | M230HGE-L20 |
| Waitohu | Innolux |
| Rahi | 23.0 |
| Taupānga | DMPC |
| Whakatau | 1920×1080 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | CHIMEI INNOLUX |

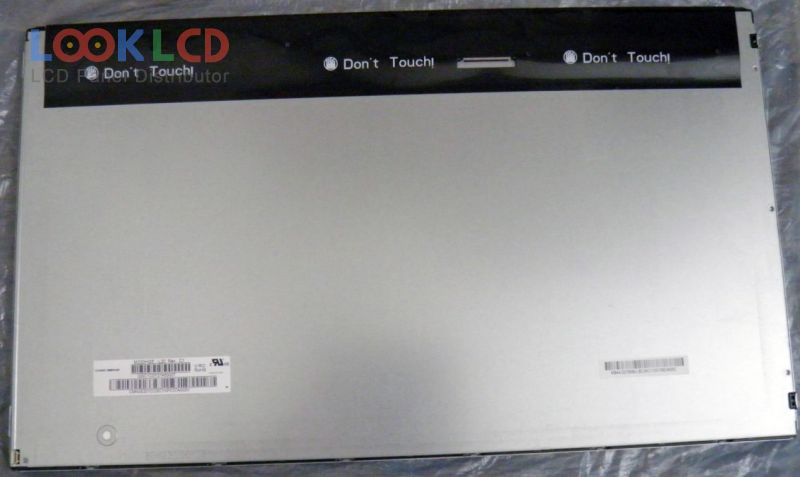

| panel model | M230HGE-L20 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 23.0 inch |
| resolution | 1920(RGB)×1080 , FHD |
| display mode | TN, Normally White, Transmissive |
| active area | 509.184×286.416 mm |
| outline | 533.2×312 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193172% |
| response time | 1.5/3.5 (Typ.)(Tr/Td) |
| viewing angle | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 14S4PWLEDWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| input voltage | 5.0V (Typ.) |
| application | DMPC |
