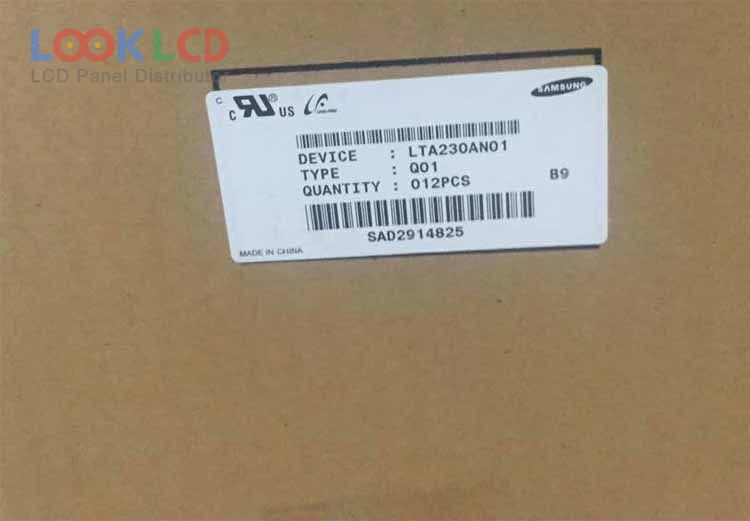

| Nama Wahi | LTA230AN01 |
| Waitohu | Samsung |
| Rahi | 23.0 |
| Taupānga | LCTV |
| Whakatau | 1366×768 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 4000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | SAMSUNG |
| panel model | LTA230AN01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 23.0 inch |
| resolution | 1366(RGB)×768 , WXGA |
| display mode | PVA, Normally Black, Transmissive |
| active area | 508.152×285.696 mm |
| outline | 534×311.8×11 mm |
| surface | Antiglare (Haze 2.3%) |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 4000:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193168% |
| response time | 8 (Typ.)(G to G) |
| viewing angle | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 10S3PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| input voltage | 12.0V (Typ.) |
| application | LCTV |
| G230HAN01.1 | AUO | 23.0 | 1920×1080 |
| LM230WF1-TLA3 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SSA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLG1 | LG Display | 23.0 | 1920×1080 |
| LM230WFA-SLZ1 | LG Display | 23.0 | 1920×1080 |
| LTA230A172F | TOSHIBA | 23.0 | 1280×768 |
| LTA230AN01 | Samsung | 23.0 | 1366×768 |
| LTA230AP01 | Samsung | 23.0 | 1366×768 |
| LTA230W2-L01 | Samsung | 23.0 | 1366×768 |
| LTM230HL08 | Samsung | 23.0 | 1920×1080 |
| HV320WX2-206 | BOE | 31.5 | 1366×768 |
| LC130V01-A2K1 | LG Display | 13.0 | 640×480 |
| LC216EXN-SDA1 | LG Display | 21.6 | 1366×768 |
| LC216EXN-SDA2 | LG Display | 21.6 | 1366×768 |
| LTA260AP10 | Samsung | 26.0 | 1366×768 |
| LTA400HA11 | Samsung | 40 | 1920×1080 |
| T260XW04 V6 | AUO | 26.0 | 1366×768 |
| T315HW02 V1 | AUO | 31.5 | 1920×1080 |
| T420HW04 V3 | AUO | 42 | 1920×1080 |
| T460HW08 VC | AUO | 46 | 1920×1080 |
