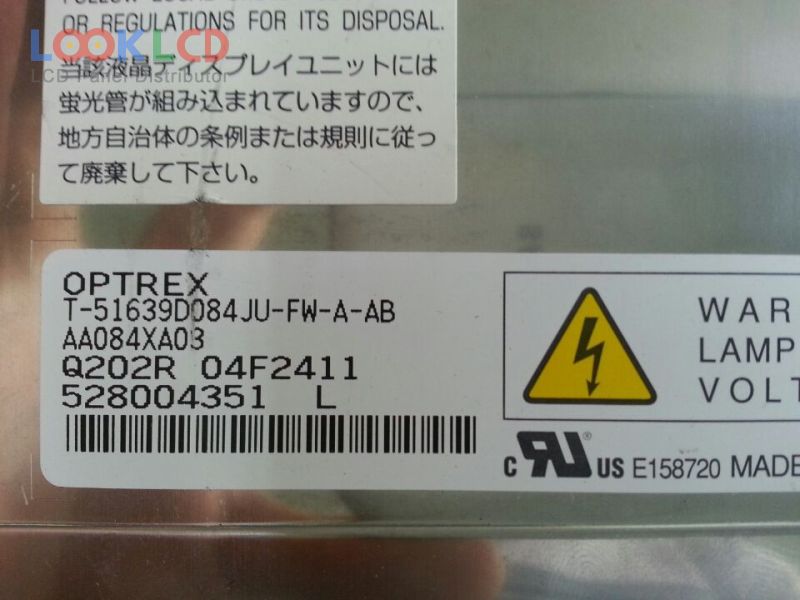

| Nama Wahi | T-51639D084JU-FW-A-AB |
| Waitohu | Kyocera |
| Rahi | 8.4 |
| Taupānga | IA |
| Whakatau | 1024×768 |
| Te tito | LCM |
| Tirohanga | 300 |
| CR | 400:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | OPTREX |
| panel model | T-51639D084JU-FW-A-AB 2 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.4 inch |
| resolution | 1024(RGB)×768 , XGA |
| display mode | TN, Normally White, Transmissive |
| active area | 171.264×128.448 mm |
| outline | 205×152.4 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| response time | 6/19 (Typ.)(Tr/Td) |
| viewing angle | 65/65/60/50 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| rohs: | |
| application | IA |
