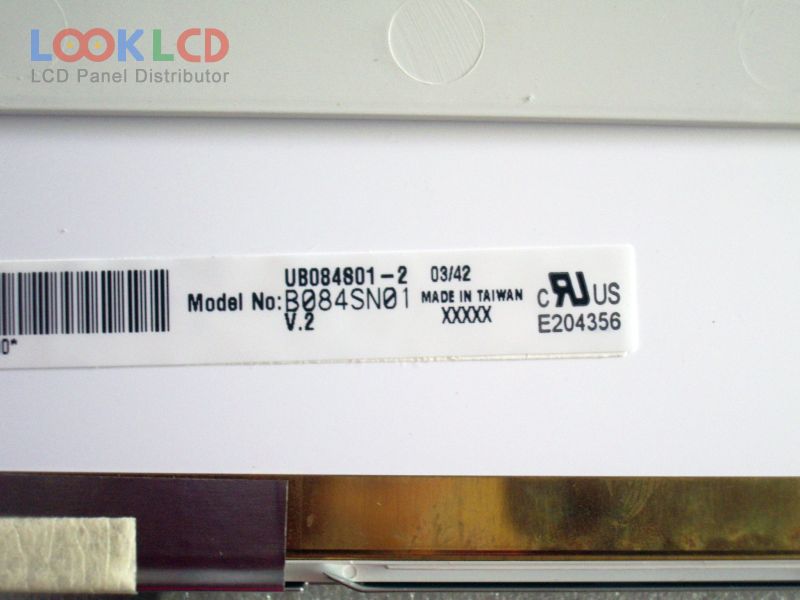

| Nama Wahi | B084SN01 V2 |
| Waitohu | AUO |
| Rahi | 8.4 |
| Taupānga | IA |
| Whakatau | 800×600 |
| Te tito | LCM |
| Tirohanga | 120 |
| CR | 200:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | AU Optronics |
| panel model | B084SN01 V2 1 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.4 inch |
| resolution | 800(RGB)×600 , SVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 170.4×127.8 mm |
| outline | 203×142.5 mm |
| surface | |
| brightness | 120 cd/m² (Typ.) |
| contrast ratio | 200:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 20/30 (Typ.)(Tr/Td) |
| viewing angle | 40/40/30/10 (Min.)(CR≥10)(L/R/U/D) |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
