| Nama Wahi | G084SN02 V0 |
| Waitohu | AUO |
| Rahi | 8.4 |
| Taupānga | IA |
| Whakatau | 800×600 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | LVDS |

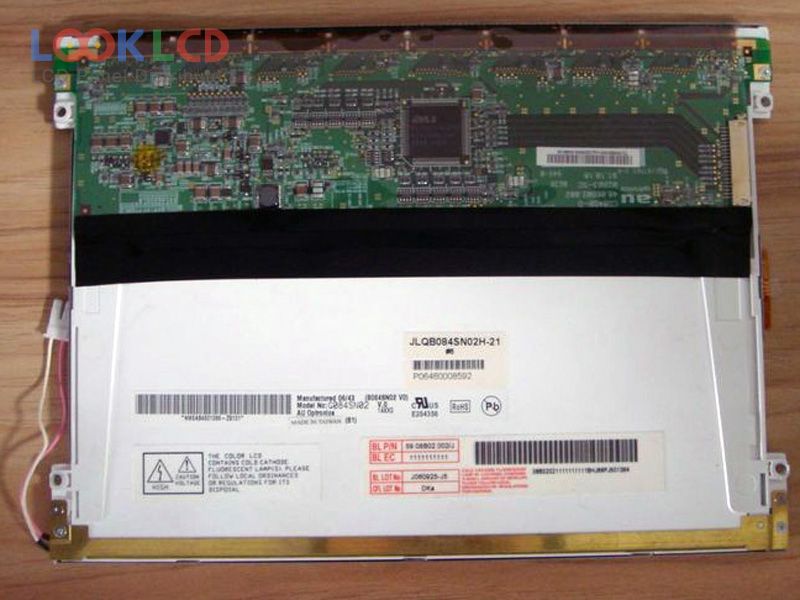

| panel brand | AUO |
| panel model | G084SN02 V0 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.4 inch |
| resolution | 800(RGB)×600 , SVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 170.4×127.8 mm |
| outline | 198.2×143.6 mm |
| surface | |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 10/25 (Typ.)(Tr/Td) |
| viewing angle | 65/65/65/45 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
| G084SN02 V0 | AUO | 8.4 | 800×600 |
| G084SN03 V0 | AUO | 8.4 | 800×600 |
| G084SN03 V1 | AUO | 8.4 | 800×600 |
| G084SN03 V2 | AUO | 8.4 | 800×600 |
| G084SN03 V3 | AUO | 8.4 | 800×600 |
| G084SN05 V3 | AUO | 8.4 | 800×600 |
| G084SN05 V5 | AUO | 8.4 | 800×600 |
| G084SN05 V7 | AUO | 8.4 | 800×600 |
| G084SN05 V8 | AUO | 8.4 | 800×600 |
| G084SN05 V9 | AUO | 8.4 | 800×600 |
| AM-1280800N1TZQW-T06H | AMPIRE | 10.1 | 1280×800 |
| AM-800600M3TNQW-00H | AMPIRE | 8.4 | 800×600 |
| AT056TN52 V.2 | Innolux | 5.6 | 640×480 |
| CLAA102NB01XV | CPT | 10.2 | 1024×600 |
| DMF50773NF-SLY | Kyocera | 5.4 | 240×128 |
| KG057QV1CA-G03 | Kyocera | 5.7 | 320×240 |
| LQ10D010 | SHARP | 10.4 | 640×480 |
| NL6448BC33-46 | NLT | 10.4 | 640×480 |
| PD104VT3 | E Ink | 10.4 | 640×480 |
| TX23D86VM0BAA | KOE | 9.0 | 1280×768 |
