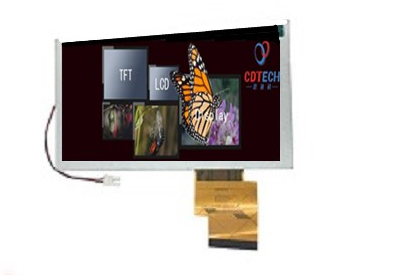

| Nama Wahi | S062WV04 |
| Waitohu | CDTECH |
| Rahi | 6.2 |
| Taupānga | Industrial Automotiv |
| Whakatau | 800×480 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 600:1 |
| Nga Tae | 16.7M |
| Whakamuri | 3S9P |
| Atanga | |
| manufacturer | CDTECH |
| screen size | 6.2 inch |
| pixel number | 800(RGB)×480 (WVGA) 150PPI |
| active area(mm) | 137.52 × 77.232 (H×V) |
| bezel area(mm) | 140.7 × 80.4 (H×V) |
| luminance | 600 (Typ.)(cd/m²) |
| viewing angle | 65/65/55/65 (Typ.)(CR≥10) |
| good view at | - |
| color depth | 16.7M |
| mass | TBD |
| refresh rate | 60Hz |
| model name | S062WV04 |
| screen type | LCM , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| outline(mm) | 155.2 × 88.2 × 3.7 (H×V×D) |
| treatment | - |
| contrast ratio | 600 : 1 (Typ.) (TM) |
| work mode | TN, Normally White, Transmissive |
| response | 30/30 (Typ.)(Tr/Td) ms |
| backlight | 3S9P WLED , 25K hours , No Driver |
| used for | Industrial Automotive Display |
| touchscreen | Without |
