| Nama Wahi | S035V01 |
| Waitohu | CDTECH |
| Rahi | 3.5 |
| Taupānga | HHP |
| Whakatau | 480×640 |
| Te tito | LCM |
| Tirohanga | 800 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | CPU/RGB/SPI |

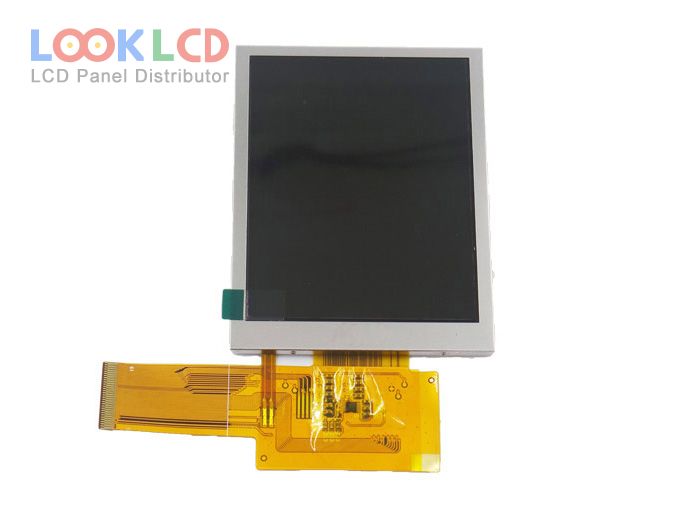

| panel brand | CDTECH |
| panel model | S035V01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 3.5 inch |
| resolution | 480(RGB)×640 , VGA |
| display mode | TN, Normally White, Transmissive |
| active area | 53.28×71.04 mm |
| outline | 64×85 mm |
| surface | |
| brightness | 800 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 65/65/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 4S2PWLEDWithout Driver |
| signal interface | CPU/RGB/SPI, 61 pins |
| input voltage | 3.3/3.3V (Typ.)(VCC/IOVCC) |
| application | HHP |
