SHARP LS013B4DN04 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com

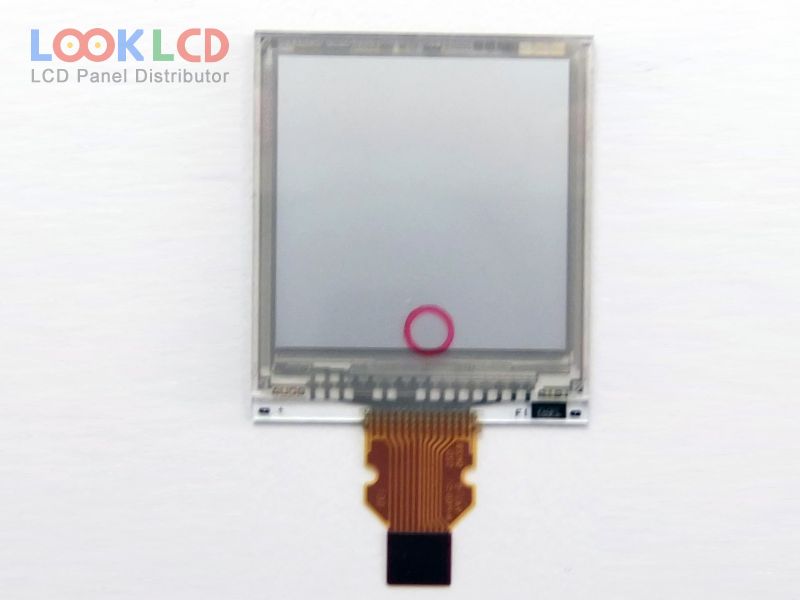

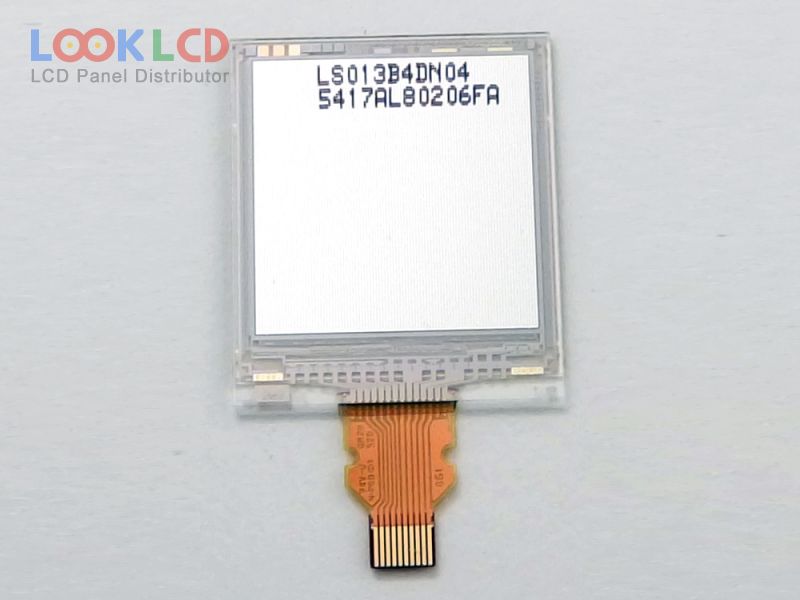

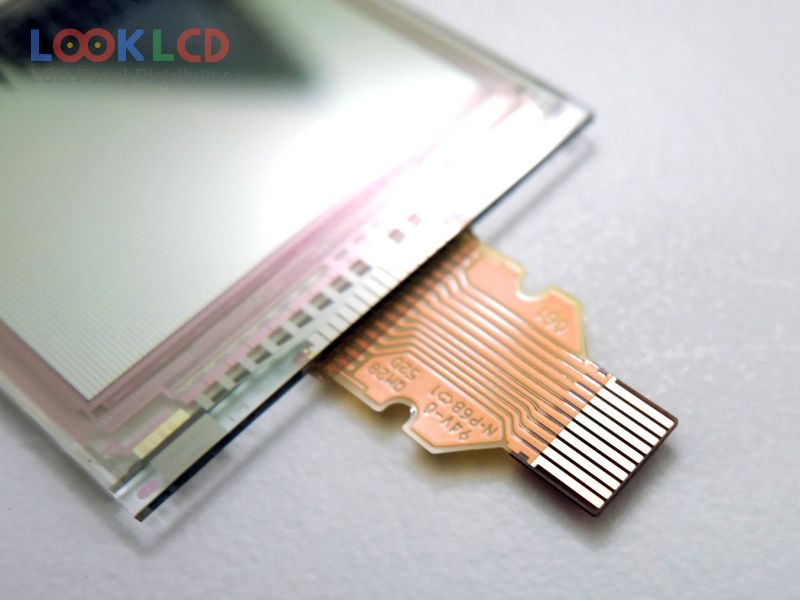

LS013B4DN04


Waitohu
SHARP
Rahi
1.35
Taupānga
HHP
Whakatau
96×96
Te tito
LCM
Tirohanga
CR
Nga Tae
Monochrome
Whakamuri
No B/L
Atanga
SPI
In Stock
20000
Whakatakotoranga

Nama Wahi LS013B4DN04
WaitohuSHARP
Rahi1.35
TaupāngaHHP
Whakatau96×96
Te titoLCM
Tirohanga
CR
Nga TaeMonochrome
WhakamuriNo B/L
AtangaSPI
panel brandSHARP
panel modelLS013B4DN04
panel type CG-Silicon , LCM
panel size1.35 inch
resolution96×96
display modePNLC, Reflective
active area24.192×24.192 mm
outline28.2×32.34 mm
surfaceWithout Polarizer, Hard coating (3H)
brightness
contrast ratio10:1 (Typ.)(Reflective)
display colorsMonochrome
response time50/50 (Typ.)(Tr/Td)
viewing angle60/60/60/60 (Min.)(CR≥3)(L/R/U/D)
lamp typeNo B/L
signal interfaceSPI, 10 pins
input voltage3.0/3.0V (Typ.)(VDDA/VDD)
applicationHHP
