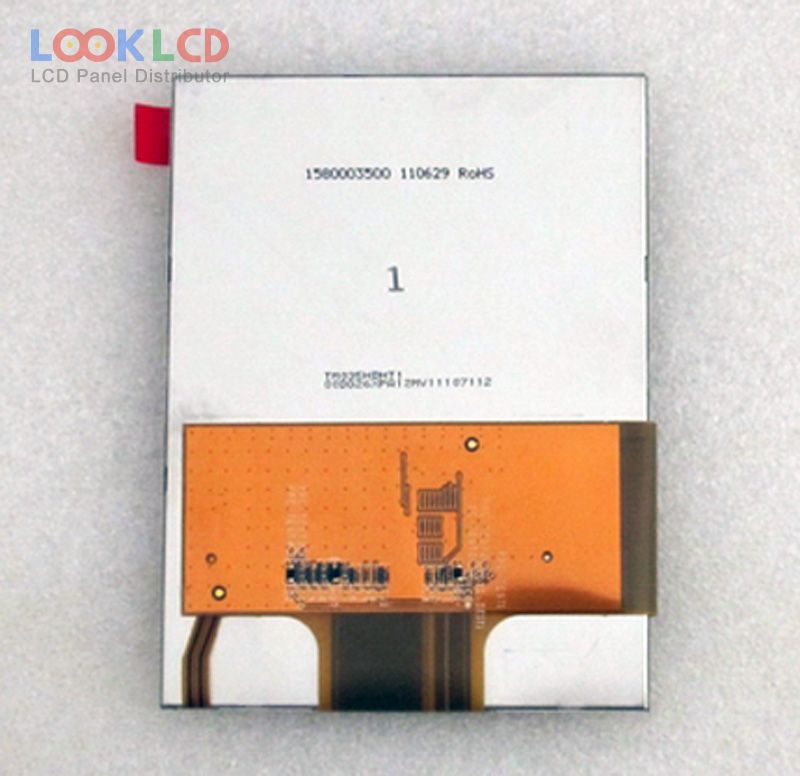

| Nama Wahi | TM035HDHT1 |
| Waitohu | Tianma |
| Rahi | 3.5 |
| Taupānga | HHP |
| Whakatau | 240×320 |
| Te tito | LCM |
| Tirohanga | 100 |
| CR | 150:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | TIANMA |
| panel model | TM035HDHT1 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 3.5 inch |
| resolution | 240(RGB)×320 , QVGA |
| display mode | ECB, Normally White, Transflective |
| active area | 53.64×71.52 mm |
| outline | 64×85×3.13 mm |
| surface | Hard coating |
| brightness | 100 cd/m² (Typ.) |
| contrast ratio | 150:1 (Typ.)(Transmissive)2.5:1 (Typ.)(Reflective) |
| display colors | 262K (6-bit), CIE193135% |
| response time | 35 (Typ.)(Tr+Td) |
| viewing angle | 40/45/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 6S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 50 pins |
| input voltage | 2.8/15/-10V (Typ.)(VCC/VGH/VGL) |
| application | HHP |
