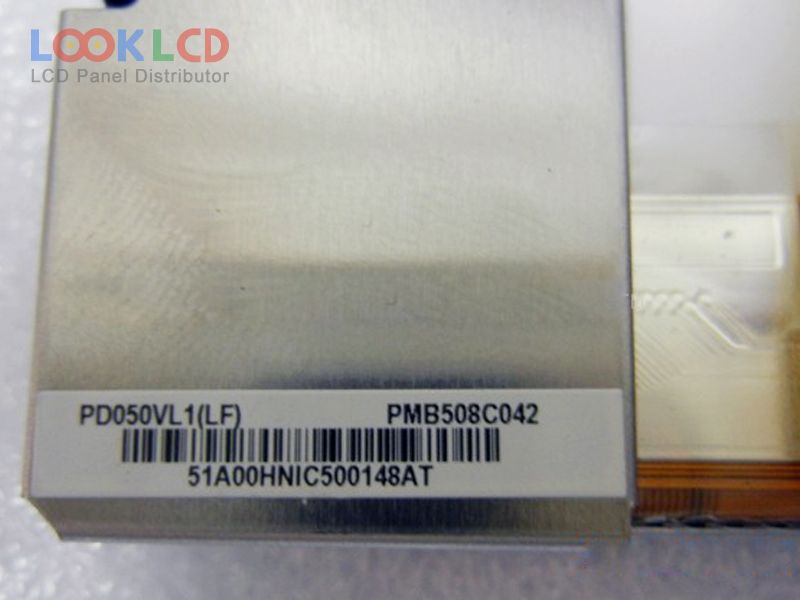

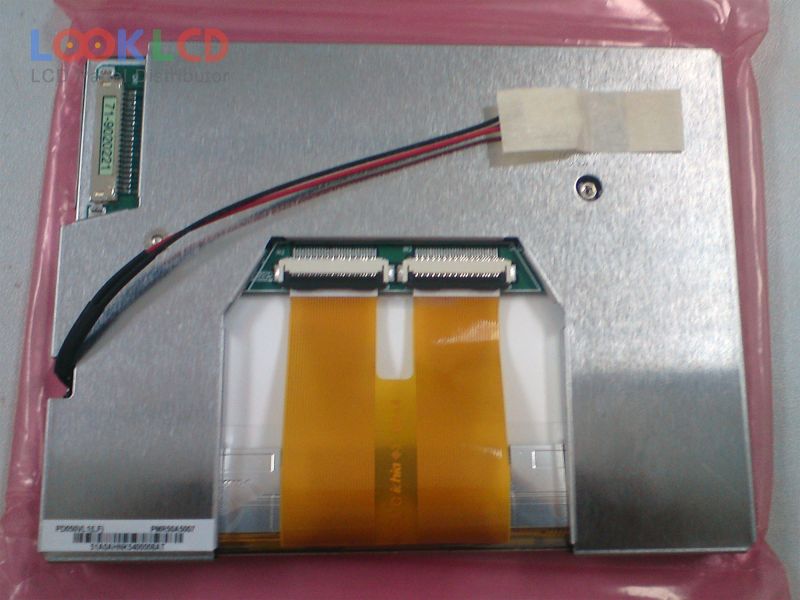

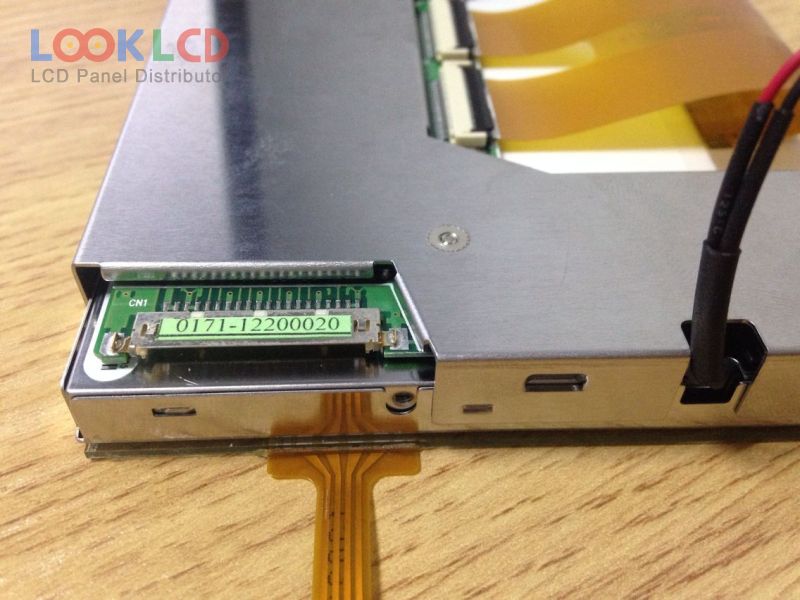

| Nama Wahi | PD050VL1 |
| Waitohu | E Ink |
| Rahi | 5.0 |
| Taupānga | CNS |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 450 |
| CR | 400:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | PVI |
| panel model | PD050VL1 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 5.0 inch |
| resolution | 640(RGB)×480 , VGA |
| display mode | TN, Normally White, Transmissive |
| active area | 101.76×74.88 mm |
| outline | 120.7×92.8×12.8 mm |
| surface | Antiglare |
| brightness | 450 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 15/25 (Typ.)(Tr/Td) |
| viewing angle | 60/60/40/55 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 3S8PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| rohs: | |
| application | CNS |
