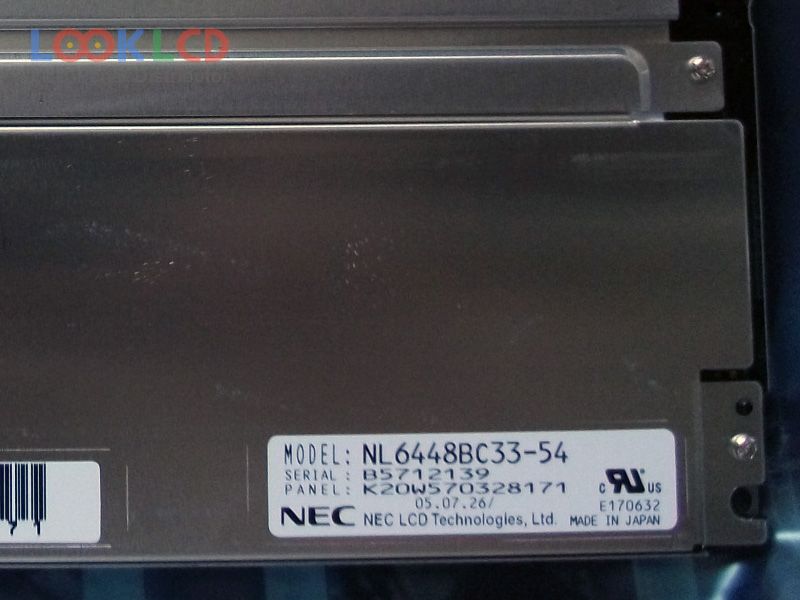

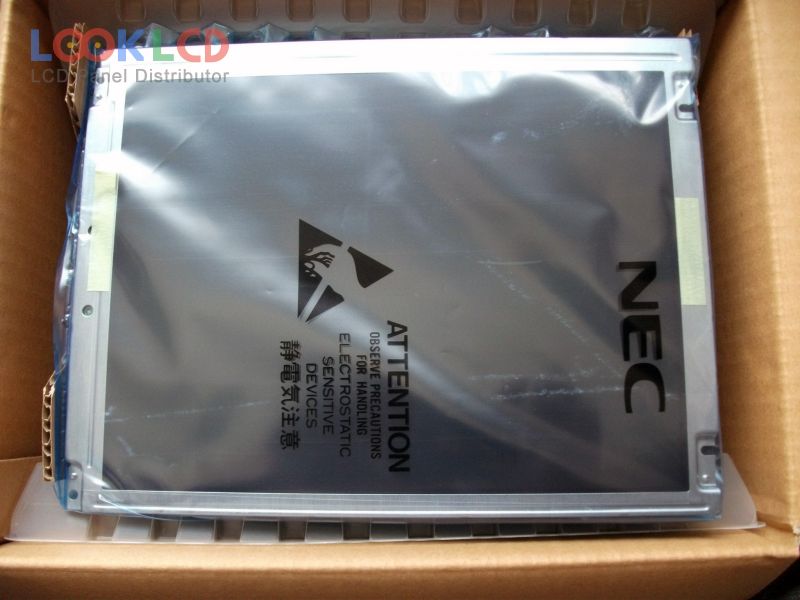

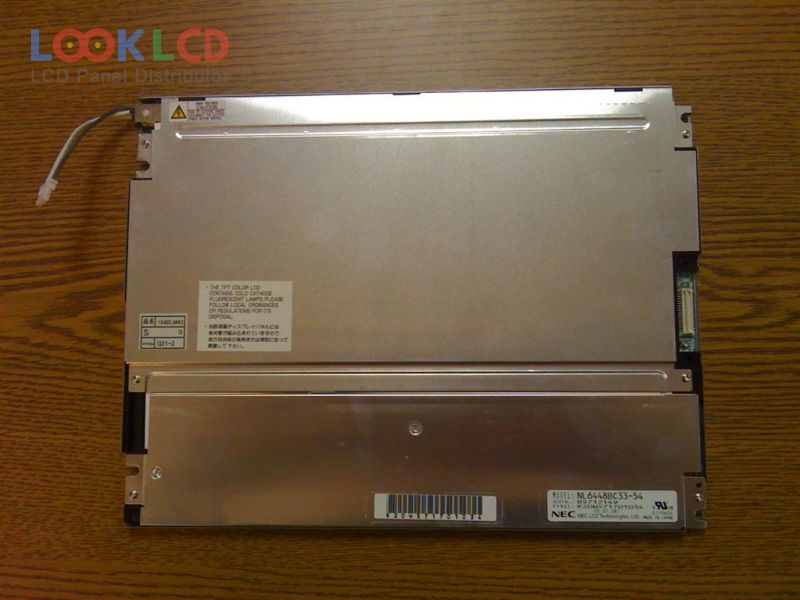

| Nama Wahi | NL6448BC33-54 |
| Waitohu | NLT |
| Rahi | 10.4 |
| Taupānga | IA |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 220 |
| CR | 350:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | NEC |
| panel model | NL6448BC33-54 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.4 inch |
| resolution | 640(RGB)×480 , VGA |
| display mode | TN, Normally White, Transmissive |
| active area | 211.2×158.4 mm |
| outline | 243×185.1×11 mm |
| surface | Clear, Hard coating (3H) |
| brightness | 220 cd/m² (Typ.) |
| contrast ratio | 350:1 (Typ.) |
| display colors | 262K (6-bit), CIE193140% |
| response time | 15/23 (Typ.)(Tr/Td) |
| viewing angle | 45/45/30/20 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 31 pins |
| input voltage | 3.3/5.0V (Typ.)(VCC) |
| application | IA |
| NL6448AC33-10 | NLT | 10.4 | 640×480 |
| NL6448BC18-03F | NLT | 5.7 | 640×480 |
| NL6448BC18-06F | NLT | 5.7 | 640×480 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
| NL6448BC26-17 | NLT | 8.4 | 640×480 |
| NL6448BC26-25 | NLT | 8.4 | 640×480 |
| NL6448BC33-46 | NLT | 10.4 | 640×480 |
| NL6448BC33-59D | NLT | 10.4 | 640×480 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
| NL6448BC33-70D | NLT | 10.4 | 640×480 |
| AM-320240N1TMQW-T30H-D(R) | AMPIRE | 5.7 | 320×240 |
| BA121S01-100 | BOE | 12.1 | 800×600 |
| G104S1-L01 | Innolux | 10.4 | 800×600 |
| G121I1-L01 | Innolux | 12.1 | 1280×800 |
| G156HTD01.0 | AUO | 15.6 | 1920×1080 |
| G190SVT01.0 | AUO | 19.0 | 1680×342 |
| LQ084S3LG03 | SHARP | 8.4 | 800×600 |
| LQ64D34 | SHARP | 6.4 | 640×480 |
| LTA121C32HF | TOSHIBA | 12.1 | 800×600 |
| UG-5664ALBEF01 | WiseChip | 3.1 | 256×64 |
