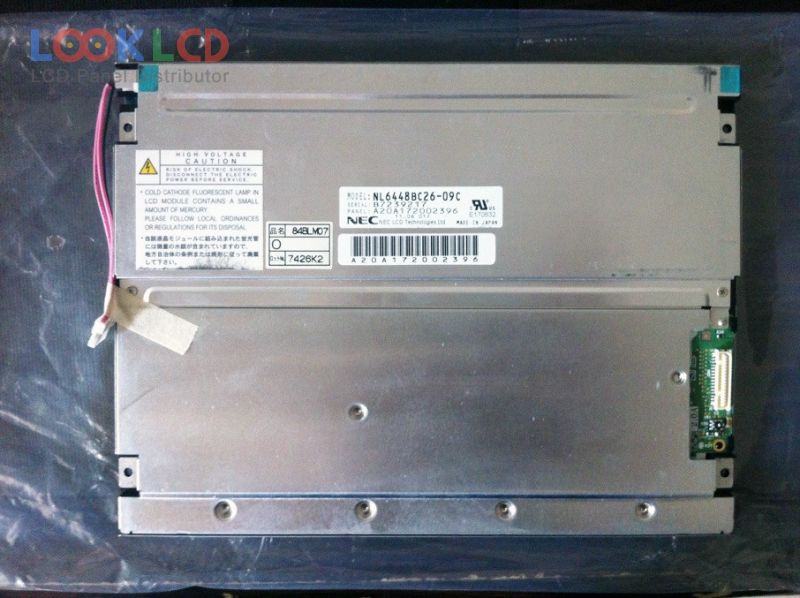

| Nama Wahi | NL6448BC26-09C |
| Waitohu | NLT |
| Rahi | 8.4 |
| Taupānga | IA |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 750 |
| CR | 600:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | NEC |
| panel model | NL6448BC26-09C |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.4 inch |
| resolution | 640(RGB)×480 , VGA |
| display mode | TN, Normally White, Transmissive |
| active area | 170.88×128.16 mm |
| outline | 200×152×11 mm |
| surface | Clear, Hard coating (2H), Antireflection |
| brightness | 750 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) |
| display colors | 262K (6-bit), CIE193140% |
| response time | 6/19 (Typ.)(Tr/Td) |
| viewing angle | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 31 pins |
| input voltage | 3.3/5.0V (Typ.) |
| application | IA |
| NL6448BC26-09 | NLT | 8.4 | 640×480 |
| NL6448BC26-25 | NLT | 8.4 | 640×480 |
| NL6448BC28-01 | NLT | 9.0 | 640×480 |
| NL6448BC33-20 | NLT | 10.4 | 640×480 |
| NL6448BC33-46 | NLT | 10.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
| NL6448BC33-64 | NLT | 10.4 | 640×480 |
| NL6448BC33-70D | NLT | 10.4 | 640×480 |
| NL6448BC33-74 | NLT | 10.4 | 640×480 |
| AA121SL07 | Mitsubishi | 12.1 | 800×600 |
| AM-1024768RTNQW-00H | AMPIRE | 12.0 | 1024×768 |
| EL640.400-CB1 FRA | Lumineq | 9.1 | 640×400 |
| G158ETN01.0 | AUO | 15.8 | |
| LB104V03-TD01 | LG Display | 10.4 | 640×480 |
| LQ070Y3DG3A | SHARP | 7.0 | 800×480 |
| LTM09C016K | TOSHIBA | 9.4 | 640×480 |
| MC57T04L | Other | 5.7 | 320×240 |
| TCG035QVLPDANN-GN50 | Kyocera | 3.5 | 320×240 |
| TX26D05VM1CAA | KOE | 10.4 | 640×480 |
