| Nama Wahi | NL6448BC20-30F |
| Waitohu | NLT |
| Rahi | 6.5 |
| Taupānga | IA |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 1000 |
| CR | 800:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | NEC |

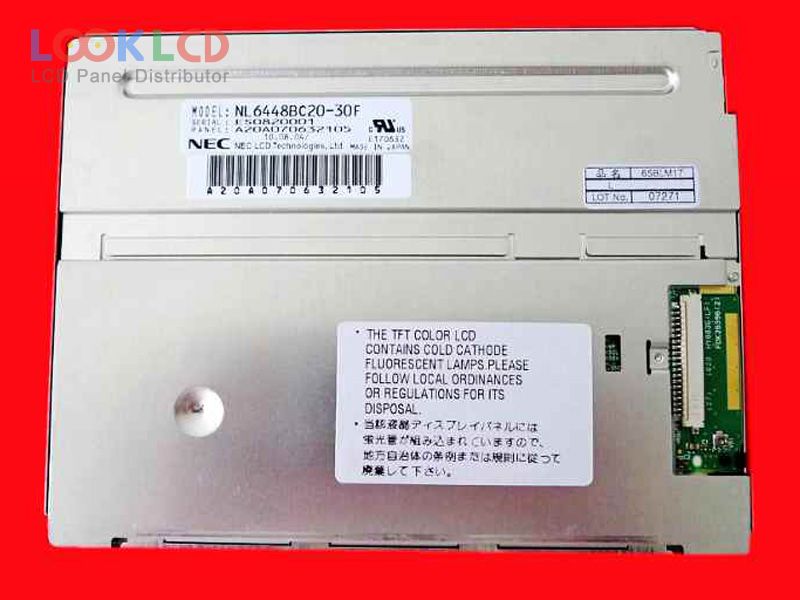

| panel model | NL6448BC20-30F |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 6.5 inch |
| resolution | 640(RGB)×480 , VGA |
| display mode | TN, Normally White, Transmissive |
| active area | 132.48×99.36 mm |
| outline | 153×118 mm |
| surface | Clear, Hard coating (3H) |
| brightness | 1000 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| response time | 3/15 (Typ.)(Tr/Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 4 stringsWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
| NL6448BC18-01 | NLT | 5.7 | 640×480 |
| NL6448BC18-01F | NLT | 5.7 | 640×480 |
| NL6448BC26-11 | NLT | 8.4 | 640×480 |
| NL6448BC26-25 | NLT | 8.4 | 640×480 |
| NL6448BC33-53 | NLT | 10.4 | 640×480 |
| NL6448BC33-59D | NLT | 10.4 | 640×480 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
| NL6448BC33-64R | NLT | 10.4 | 640×480 |
| NL6448BC33-70D | NLT | 10.4 | 640×480 |
| NL6448BC33-71 | NLT | 10.4 | 640×480 |
| B084SN01 V0 | AUO | 8.4 | 800×600 |
| G121XTN01.0 | AUO | 12.1 | 1024×768 |
| G150XTN01.1 | AUO | 15.0 | 1024×768 |
| HV121X02-100 | HYDIS | 12.1 | 1024×768 |
| KCB6448BSTT-X1 | Kyocera | 10.4 | 640×480 |
| LQ075V3DG01 | SHARP | 7.5 | 640×480 |
| NL8048BC24-09D | NLT | 9.0 | 800×480 |
| OEL9M0072-B-E | Other | 1.54 | 128×64 |
| SX19V001-ZZA | KOE | 7.5 | 640×480 |
| SX25S004 | KOE | 10.0 | 800×600 |
