| Nama Wahi | HV121X02-100 |
| Waitohu | HYDIS |
| Rahi | 12.1 |
| Taupānga | IA |
| Whakatau | 1024×768 |
| Te tito | CELL |
| Tirohanga | 0 |
| CR | 450:1 |
| Nga Tae | 262K |
| Whakamuri | No B/L |
| Atanga | LVDS |
| panel brand | BOE HYDIS |

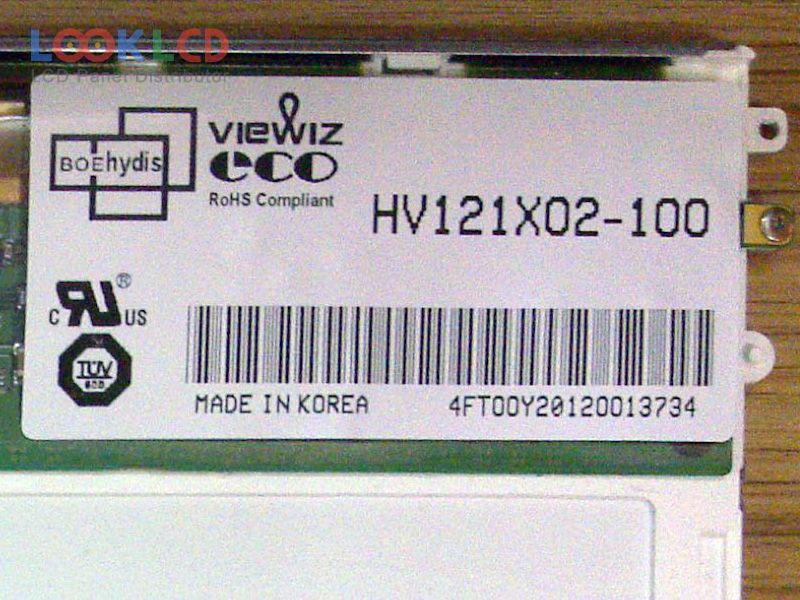

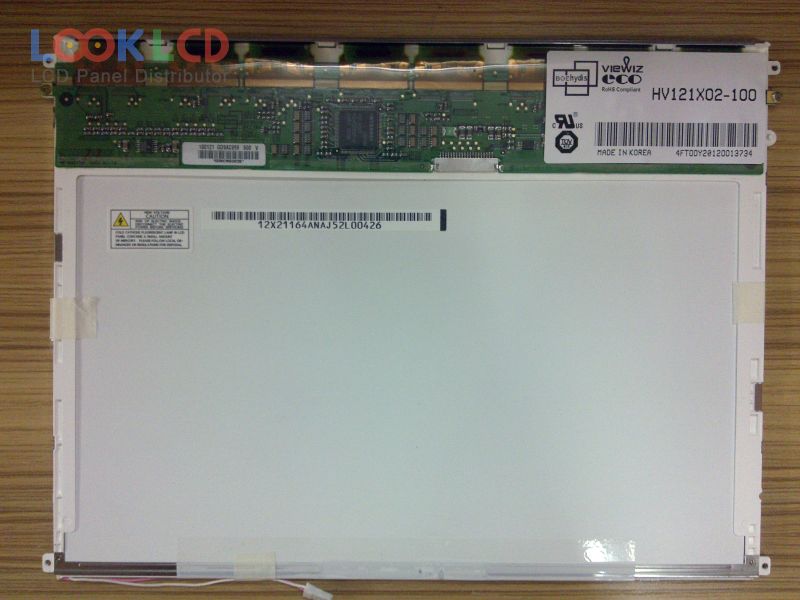

| panel model | HV121X02-100 |
| panel type | a-Si TFT-LCD , CELL |
| panel size | 12.1 inch |
| resolution | 1024(RGB)×768 , XGA |
| display mode | AFFS, Normally Black, Transmissive |
| active area | 245.76×184.32 mm |
| surface | Glare (Haze 0%), Antireflection |
| transmissivity | 5.91% (Typ.)(with Polarizer) |
| contrast ratio | 450:1 (Typ.) |
| display colors | 262K (6-bit), CIE193140% |
| response time | 32 (Typ.)(Tr+Td) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
