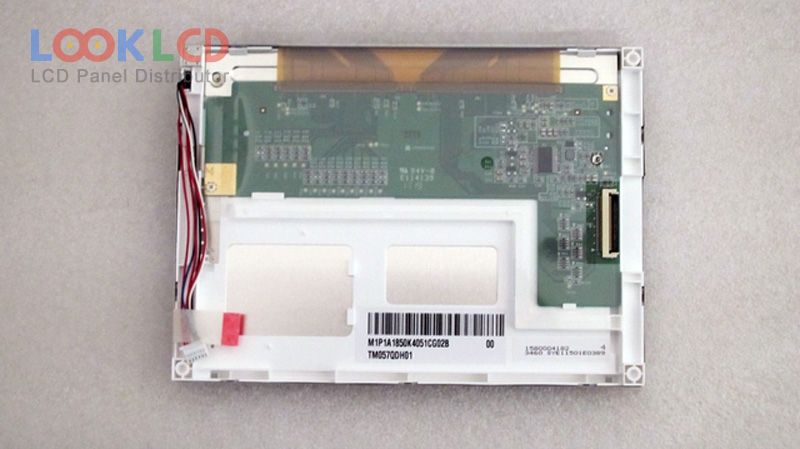

| Nama Wahi | TM057QDH01 |
| Waitohu | Tianma |
| Rahi | 5.7 |
| Taupānga | IA |
| Whakatau | 640×480 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | TIANMA |
| panel model | TM057QDH01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 5.7 inch |
| resolution | 640(RGB)×480 , VGA |
| display mode | TN, Normally White, Transmissive |
| active area | 115.2×86.4 mm |
| outline | 144×104.6×12.8 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit), CIE193150% |
| response time | 20 (Typ.)(Tr+Td) |
| viewing angle | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 7S3PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 33 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
| TM057KDH01 | Tianma | 5.7 | 320×240 |
| TM057KDH02 | Tianma | 5.7 | 320×240 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
| TM057KDH05 | Tianma | 5.7 | 320×240 |
| TM057KDHG03 | Tianma | 5.7 | 320×240 |
| TM057KDHG10 | Tianma | 5.7 | 320×240 |
| TM057QDH01 | Tianma | 5.7 | 640×480 |
| TM057QDHG02 | Tianma | 5.7 | 640×480 |
| TM057QDHG04 | Tianma | 5.7 | 640×480 |
| TM057QVHG01 | Tianma | 5.7 | 640×480 |
| AA065VE01 | Mitsubishi | 6.5 | 640×480 |
| G057VN01 V0 | AUO | 5.7 | 640×480 |
| G084SN05 V5 | AUO | 8.4 | 800×600 |
| LB104S04-TL01 | LG Display | 10.4 | 800×600 |
| LB121S03-TL03 | LG Display | 12.1 | 800×600 |
| LM32C041 | SHARP | 5.5 | 320×240 |
| LQ121S1DG21A | SHARP | 12.1 | 800×600 |
| LQ64D343R | SHARP | 6.4 | 640×480 |
| TM080VG-22L01 | SANYO | 8.0 | 640×480 |
| TX26D11VM1CAA | KOE | 10.4 | 640×480 |
