| Nama Wahi | M236H1-L07 |
| Waitohu | Innolux |
| Rahi | 23.6 |
| Taupānga | DMPC |
| Whakatau | 1920×1080 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 1200:1 |
| Nga Tae | 16.7M |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | CMO |
| panel model | M236H1-L07 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 23.6 inch |
| resolution | 1920(RGB)×1080 , FHD |
| display mode | TN, Normally White, Transmissive |
| active area | 521.28×293.22 mm |
| outline | 544.8×320.5 mm |
| surface | Antiglare (Haze 25%), Hard coating (3H) |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 1200:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193172% |
| response time | 0.7/2.3 (Typ.)(Tr+Td) |
| viewing angle | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |

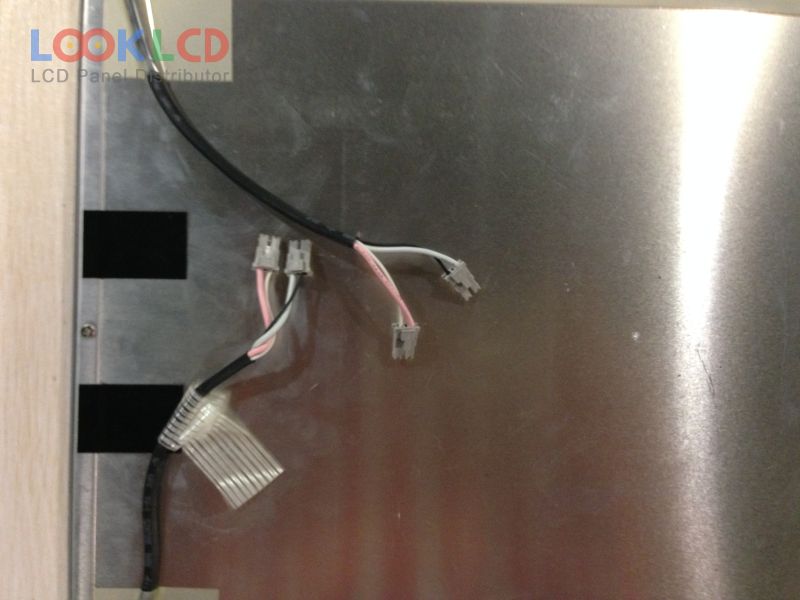

| lamp type | 2 pcsCCFLWithout Driver |
| input voltage | 5.0V (Typ.) |
| application | DMPC |
