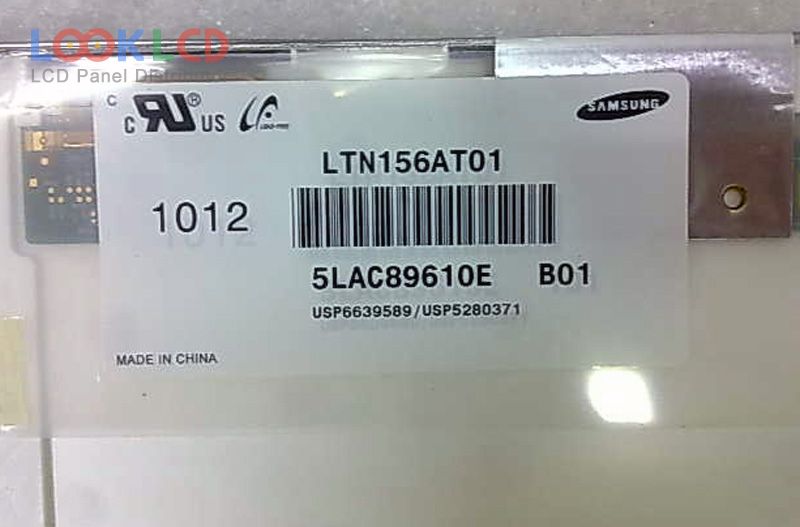

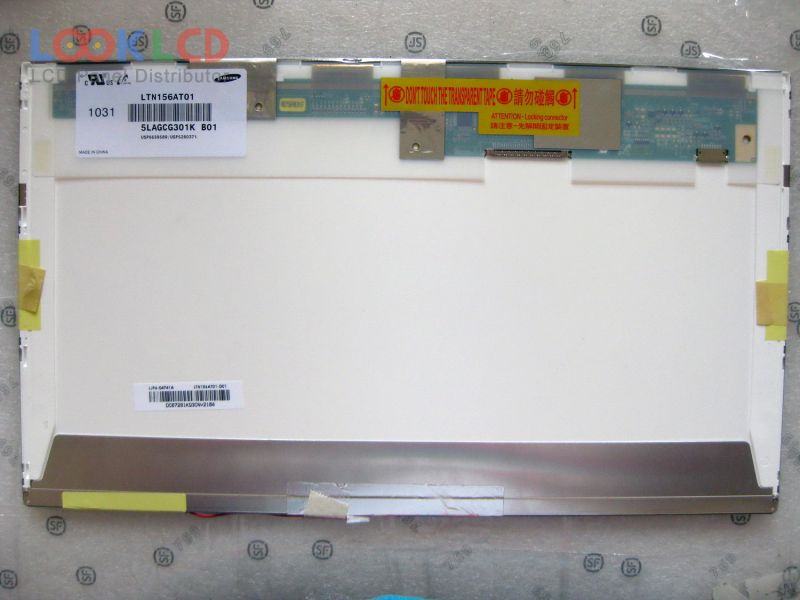

| Nama Wahi | LTN156AT01-B01 |
| Waitohu | Samsung |
| Rahi | 15.6 |
| Taupānga | NBPC |
| Whakatau | 1366×768 |
| Te tito | LCM |
| Tirohanga | 220 |
| CR | 600:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | SAMSUNG |
| panel model | LTN156AT01-B01 10 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 15.6 inch |
| resolution | 1366(RGB)×768 , WXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 344.232×193.536 mm |
| outline | 359.3×209.5×6.2 mm |
| shape style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Glare (Haze 0%), Hard coating (3H) |
| brightness | 220 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) |
| display colors | 262K (6-bit), CIE193160% |
| response time | 25/35 (Typ./Max.)(Tr+Td) |
| viewing angle | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | NBPC |
