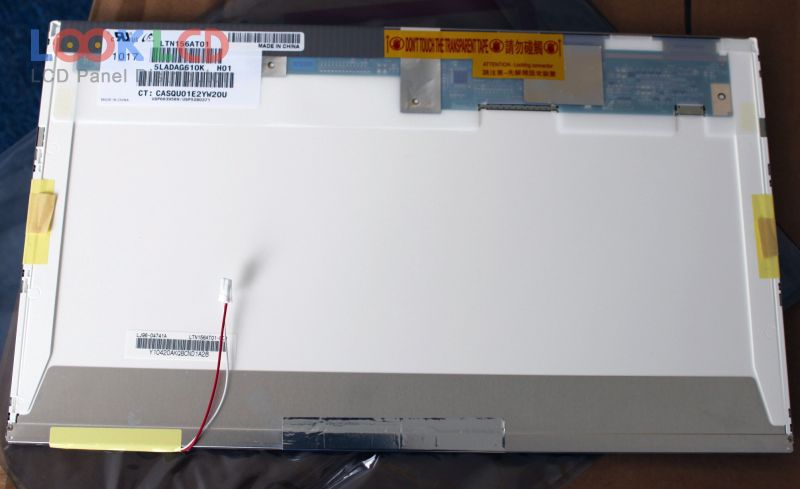

| Nama Wahi | LTN156AT01-H01 |
| Waitohu | Samsung |
| Rahi | 15.6 |
| Taupānga | NBPC |
| Whakatau | 1366×768 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 600:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | SAMSUNG |
| panel model | LTN156AT01-H01 11 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 15.6 inch |
| resolution | 1366(RGB)×768 , WXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 344.232×193.536 mm |
| outline | 359.3×209.5×6.2 mm |
| shape style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Glare (Haze 0%), Hard coating (3H) |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | NBPC |
| LTN156AT02 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-601 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-H01 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-H02 | Samsung | 15.6 | 1366×768 |
| LTN156AT06-001 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT32-401 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-H01 | Samsung | 15.6 | 1366×768 |
| LTN156AT36-D01 | Samsung | 15.6 | 1366×768 |
| B156XW02 V6 | AUO | 15.6 | 1366×768 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| HN133WU1-100 | BOE | 13.3 | 1920×1080 |
| LP125WF2-SPB3 | LG Display | 12.5 | 1920×1080 |
| LP154WU1-A1K3 | LG Display | 15.4 | 1920×1200 |
| LP154WX4-TLC5 | LG Display | 15.4 | 1280×800 |
| LP164WD1-TLA1 | LG Display | 16.4 | 1600×900 |
| LTD121EWPF | TOSHIBA | 12.1 | 1280×800 |
| N133BGE-L31 | Innolux | 13.3 | 1366×768 |
| N141XC-L02 | Innolux | 14.1 | 1024×768 |
