| Nama Wahi | LTN101AT03-801 |
| Waitohu | Samsung |
| Rahi | 10.1 |
| Taupānga | NBPC |
| Whakatau | 1366×768 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | SAMSUNG |

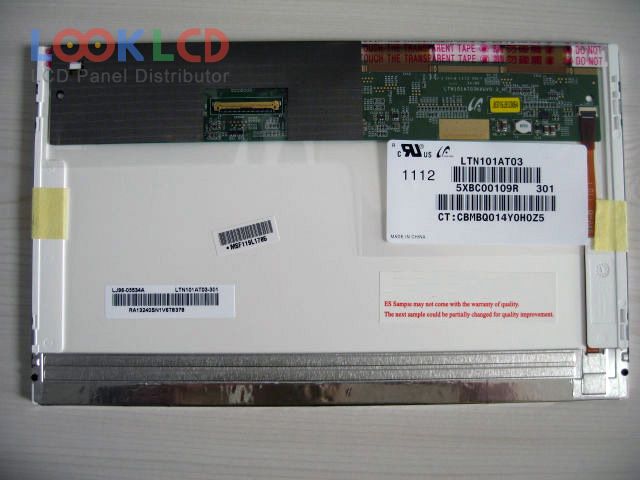

| panel model | LTN101AT03-801 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1366(RGB)×768 , WXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 222.726×125.222 mm |
| outline | 232×135.33 mm |
| shape style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Antiglare |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | |
| display colors | 262K (6-bit) |
| response time | |
| viewing angle | 45/45/20/40 (Min.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | NBPC |
