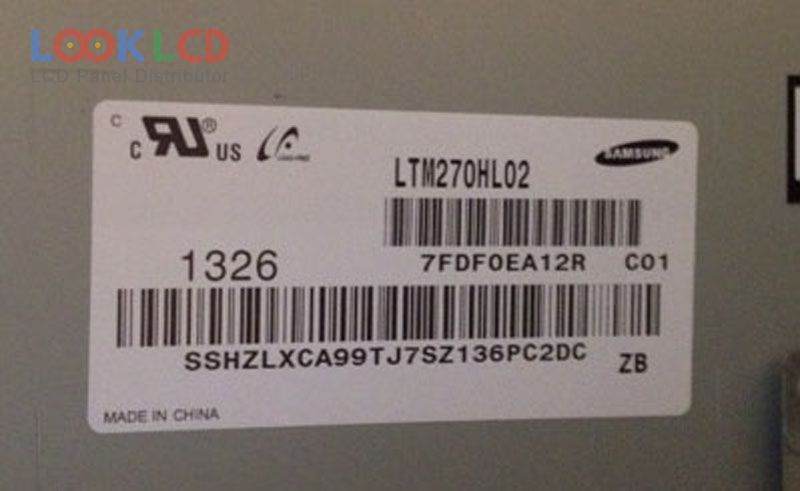

| Nama Wahi | LTM270HL02 |
| Waitohu | Samsung |
| Rahi | 27.0 |
| Taupānga | DMPC |
| Whakatau | 1920×1080 |
| Te tito | LCM |
| Tirohanga | 300 |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | SAMSUNG |
| panel model | LTM270HL02 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 27.0 inch |
| resolution | 1920(RGB)×1080 , FHD |
| display mode | PLS, Normally Black, Transmissive |
| active area | 597.888×336.312 mm |
| outline | 630×368.2×12.2 mm |
| surface | Antiglare (Haze 25%), Hard coating (3H) |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193172% |
| response time | 15 (Typ.)(G to G) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 13S3PWLEDWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| input voltage | 5.0V (Typ.) |
| application | DMPC |
