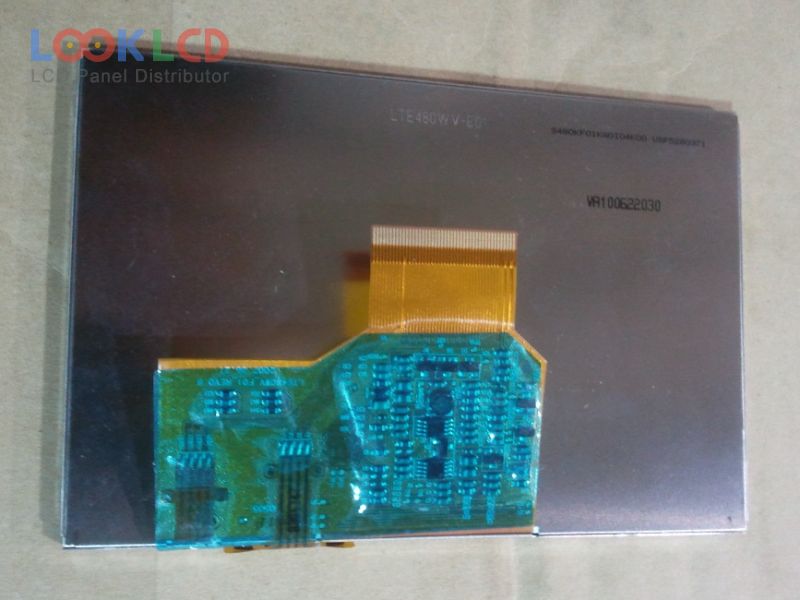

| Nama Wahi | LTE480WV-F01 |
| Waitohu | Samsung |
| Rahi | 4.8 |
| Taupānga | PND |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 280 |
| CR | 300:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | SAMSUNG |
| panel model | LTE480WV-F01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 4.8 inch |
| resolution | 800×480(RGB) , WVGA |
| display mode | TN, Normally White, TMR |
| active area | 103.8×62.28 mm |
| outline | 118.2×74.28 mm |
| surface | |
| brightness | 280 cd/m² (Typ.) |
| contrast ratio | 300 : 1 (Typ.) |
| display colors | 16.7M (8-bit) |
| response time | 22.5 (Typ.)(Tr+Td) |
| viewing angle | 65/65/60/50 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 7S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 45 pins |
| input voltage | 3.3V (Typ.)(VCC) |
| application | PND |
| 43WQW3H | SII | 4.3 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| CLAA050LA0ACW | CPT | 5.0 | 800×480 |
| LB035Q02-TD01 | LG Display | 3.5 | 320×240 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LMS500HF07 | Samsung | 5.0 | 480×272 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LTE430WQ-F0B | Samsung | 4.3 | 480×272 |
| TM047NDH01 | Tianma | 4.7 | 480×272 |
