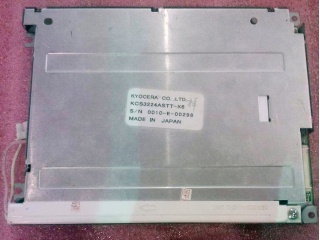

| Nama Wahi | KCS3224ASTT-X6 |
| Waitohu | Kyocera |
| Rahi | 5.7 |
| Taupānga | Industrial |
| Whakatau | 320×240 |
| Te tito | CSTN-LCD , LCM |
| Tirohanga | |
| CR | 25:1 |
| Nga Tae | Color |
| Whakamuri | - |
| Atanga | Parallel |
| brand | Kyocera |
| diagonal size | 5.7 inch |
| pixel format | 320(RGB)×240 [QVGA] 70PPI |
| active area | 115.2(H)×86.4(V) mm |
| luminance | - |
| view direction | - |
| viewing angle | 50/50/30/30 (Typ.)(CR≥2) |
| support color | Color |
| weight | - |
| frame rate | 75Hz |
| interface type | Parallel Data (1ch, 8-bit) Connector |
| power supply | 5.0V (Typ.) |
| environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | KCS3224ASTT-X6 |
| type | CSTN-LCD , LCM |
| configuration | RGB Vertical Stripe |
| outline dim. | - |
| contrast ratio | 25:1 (Typ.) (TM) |
| response time | 220/110 (Typ.)(Tr/Td) |
| operating mode | STN, Normally Black, Transmissive |
| light source | |
| designed for | Industrial |
| touch panel | Without |
