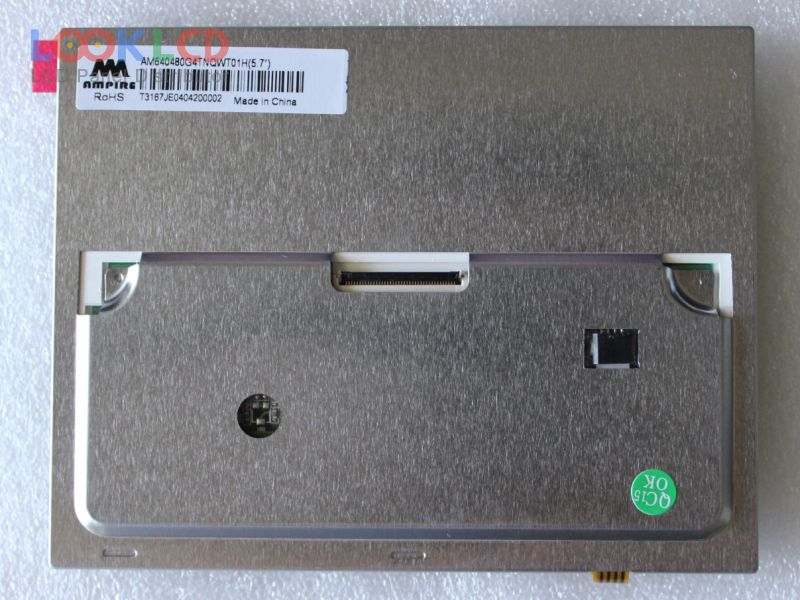

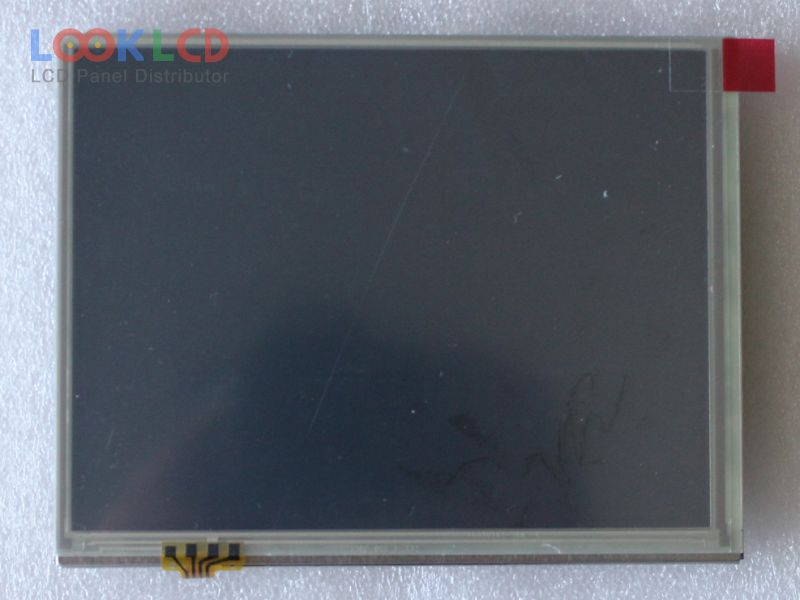

AM-640480G4TNQW-T01H

AM-640480G4TNQW-T01H
AM-640480G4TNQW-T01H
AM-640480G4TNQW-T01H thumb AM-640480G4TNQW-T01H thumb
Waitohu
AMPIRE
Rahi
5.7
Taupānga
IA
Whakatau
640×480
Te tito
LCM
Tirohanga
400
CR
250:1
Nga Tae
262K
Whakamuri
WLED
Atanga
TTL
In Stock
3
Whakatakotoranga

Nama Wahi AM-640480G4TNQW-T01H
WaitohuAMPIRE
Rahi5.7
TaupāngaIA
Whakatau640×480
Te titoLCM
Tirohanga400
CR250:1
Nga Tae262K
WhakamuriWLED
AtangaTTL
panel brandAMPIRE
panel modelAM-640480G4TNQW-T01H
panel type a-Si TFT-LCD , LCM
panel size5.7 inch
resolution640(RGB)×480 , VGA
display modeTN, Normally White, Transmissive
active area115.2×86.4 mm
outline127×99.13×10.2 mm
surface
brightness400 cd/m² (Typ.)
contrast ratio250:1 (Typ.)
display colors262K (6-bit)
response time50 (Typ.)(Tr+Td)
viewing angle70/70/50/50 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp typeWLEDEmbedded (LED Driver)
signal interfaceParallel RGB (1 ch, 6-bit), 40 pins
input voltage3.3V (Typ.)
applicationIA
Tauira Whanau
AM-640480G2TNQW-00H-F AMPIRE 5.7 640×480
AM-640480G2TNQW-31H AMPIRE 5.7 640×480
AM-640480G2TNQW-31H-F AMPIRE 5.7 640×480
AM-640480G2TNQW-T01H-A AMPIRE 5.7 640×480
AM-640480G4TNQW-A0H AMPIRE 5.7 640×480
AM-640480G4TNQW-T01H AMPIRE 5.7 640×480
AM-640480GFTNQW-T01H-L AMPIRE 5.7 640×480
AM-640480GJTNQW-TA0H AMPIRE 5.7 640×480
KCG057QV1DB-G77 Kyocera 5.7 320×240
TM057KDH03 Tianma 5.7 320×240
