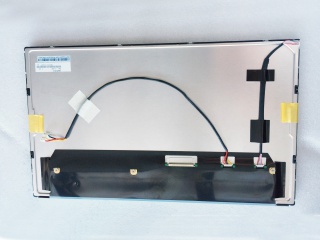

| Nama Wahi | HSD156JUW1-A00 |
| Waitohu | HannStar |
| Rahi | 15.6 |
| Taupānga | Industrial Outdoor H |
| Whakatau | 1920×1080 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | 8S6P |
| Atanga | LVDS |
| manufacturer | HannStar |
| model name | HSD156JUW1-A00 |
| screen size | 15.6 inch |
| screen type | LCM , a-Si TFT-LCD |
| pixel number | 1920(RGB)×1080 (FHD) 141PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 344.16 × 193.59 (H×V) |
| outline(mm) | 363.8 × 215.9 × 12 (H×V×D) |
| bezel area(mm) | 346 × 195.4 (H×V) |
| treatment | Antiglare |
| luminance | 850 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| response | 18/17 (Typ.)(Tr/Td) ms |
| good view at | Symmetry |
| work mode | IPS Pro, Normally Black, Transmissive |
| color depth | 16.7M 70% NTSC |
| backlight | 8S6P WLED , 50K hours , With LED Driver |
| mass | TBD |
| used for | Industrial Outdoor High Brightness Automotive Display |
| refresh rate | 60Hz |
| touchscreen | Without |
| signal type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| voltage supply | 5.0V (Typ.) |
| max. ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
