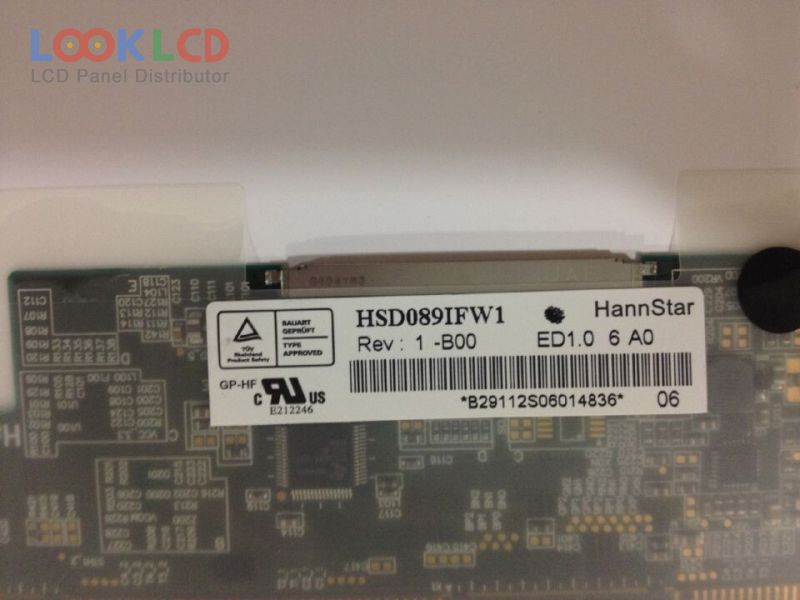

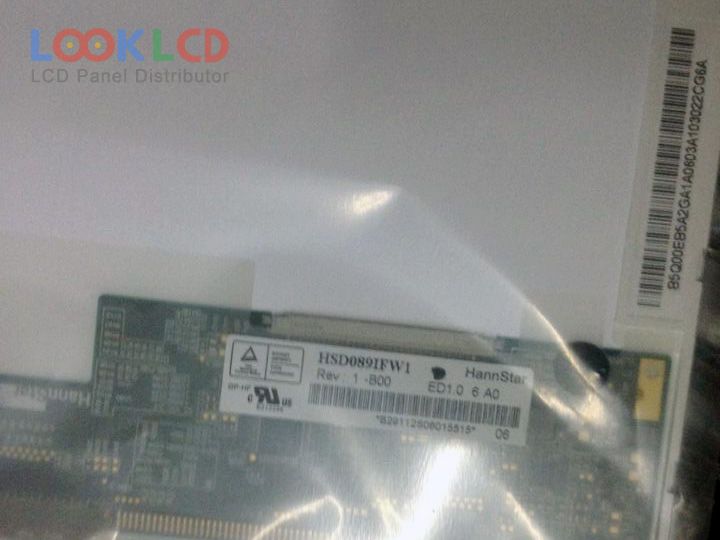

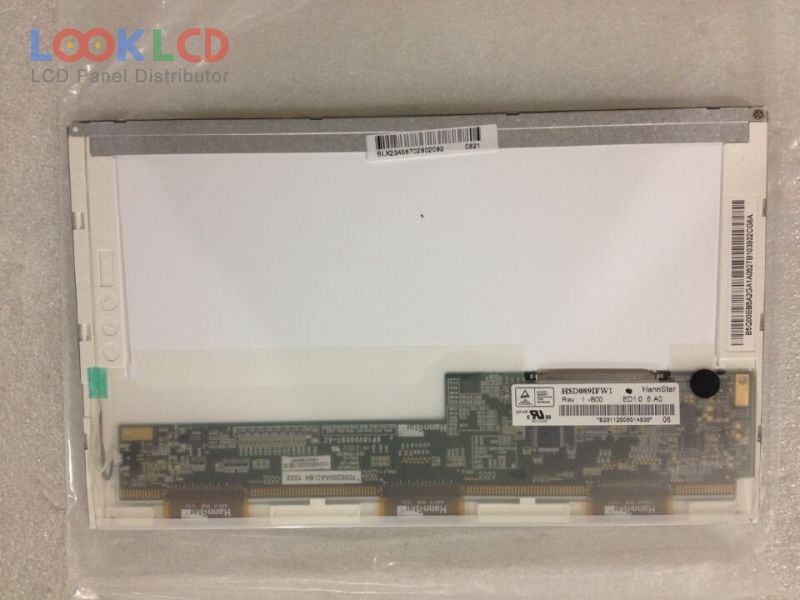

| Nama Wahi | HSD089IFW1-B00 |
| Waitohu | HannStar |
| Rahi | 8.9 |
| Taupānga | MP4 |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | 220 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | HannStar |
| panel model | HSD089IFW1-B00 2 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.9 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 195.072×113.4 mm |
| outline | 213.36×129.55×5.45 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 220 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 5/20 (Typ.)(Tr/Td) |
| viewing angle | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | MP4 |
| A089SW01 V1 | AUO | 8.9 | 1024×600 |
| B089AW01 V0 | AUO | 8.9 | 1024×600 |
| HSD089IFW1-A00 | HannStar | 8.9 | 1024×600 |
| HSD089IFW1-B00 | HannStar | 8.9 | 1024×600 |
| HSD089IFW1-D00 | HannStar | 8.9 | 1024×600 |
| HSD089IFW3-A00 | HannStar | 8.9 | 1024×600 |
| LJ089MB2S01 | SHARP | 8.9 | 640×400 |
| LTM09C362Z | TOSHIBA | 8.9 | 1024×600 |
| N089A1-L01 | Innolux | 8.9 | 1280×768 |
| NL12876BC15-01 | NLT | 8.9 | 1280×768 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| BA070WS1-401 | BOE | 7.0 | 1024×600 |
| CLAA070ND22CW | CPT | 7.0 | 1024×600 |
| DLC0700JMG-6 | Other | 7.0 | 1024×600 |
| HV070WS1-1E1 | HYDIS | 7.0 | 1024×600 |
| LMS430HF11-003 | Samsung | 4.3 | 480×272 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| N070LGE-L21 | Innolux | 7.0 | 1024×600 |
| TM070DDH01 | Tianma | 7.0 | 1024×600 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
